MTD010715

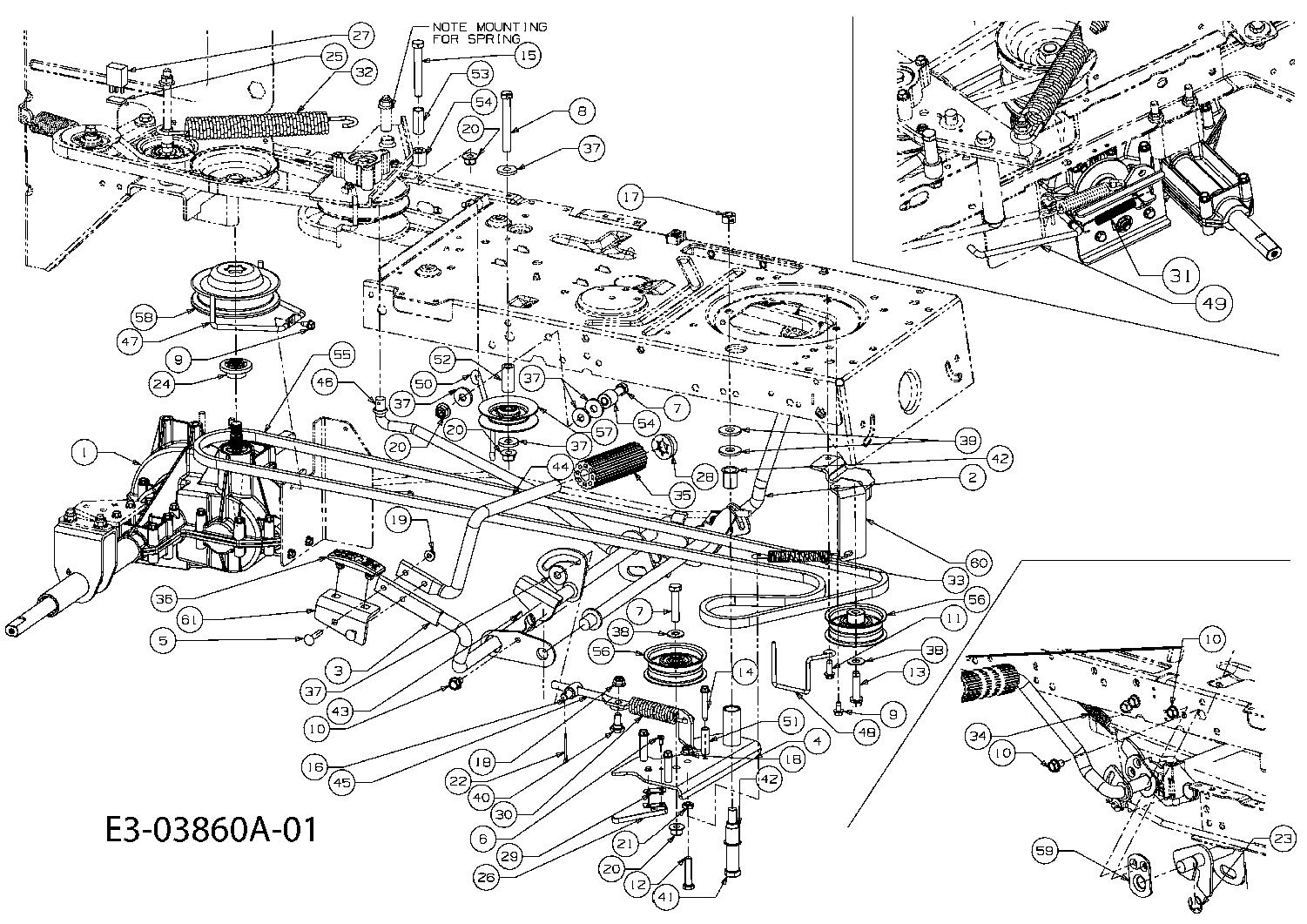

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04580	TRANSMISSION	£630.58	Add
002	647-04135A	ROD ASM:BRAKE:A-MATIC	N/A	POA
003	647-04136	ROD ASM:VARI:A-MATIC	N/A	POA
004	683-04452	BRKT ASM:IDLR:REV:AUTOMATIC	N/A	POA
005	710-0111	NO LONGER AVAILABLE	N/A	POA
006	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
007	710-0347	HEX SCR	£3.72	Add
008	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-0604A	SCREW	£3.62	Add
010	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
011	710-0805	SCRE.HHCS:5/16-18:1.50:GR5:STD	£4.71	Add
012	710-1007	SCREW HEX HD TAP	£4.14	Add
013	710-1325	SCR:TT:1/4-20:1.625:HXINDWSH	£3.77	Add
014	710-3022	HEX BOLT UTV	£3.58	Add
015	710-3130	SCREW HHCS:3/8-16:3.25:GR8:STD	£8.12	Add
016	711-04075A	FRL:3/8-24 X.375 DIA	£12.75	Add
017	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
018	712-04063	FLANGED NUT	£4.20	Add
019	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
020	712-04065	NUT	£4.02	Add
021	712-3046	Nut, Hex Jam 5/16-18 Thd.	£3.33	Add
022	714-0470	COTTER PIN	£5.07	Add
023	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
024	718-04403	NO LONGER AVAILABLE	N/A	POA
025	721-0342	GSKT:RLY:SILICONE	£5.96	Add
026	725-1643	SW:SPR:LONG	£11.69	Add
027	725-1648	RLY:SPTDT:12V 20AMP	£46.64	Add
028	726-0214	PUSH CAP	£5.36	Add
029	726-0320	INSULATING PLATE	£2.97	Add
030	732-04329A	SPR:EXTN: .840 DIA x 4.45 LG	£14.70	Add
031	732-04488	SPRING:EXT:.38 OD x 3.25 LG	£16.58	Add
032	732-04504	NO LONGER AVAILABLE	N/A	POA
033	732-0470A	EXTENSION SPRING	£11.07	Add
034	732-0814	SPRING 56 DIA x 5.52 LG	£11.51	Add
035	735-0239A	FOOT PAD	£8.75	Add
036	735-04113	PAD:FOOT:REV	£11.55	Add
037	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
038	736-0300	WASHER	£2.81	Add
039	736-04097A	WASHER	£3.33	Add
040	738-0140	SHLD SCREW	£6.03	Add
041	738-04127	SCR:SHLDR:.65x2.64:7/16-14	£9.51	Add
042	741-0591	FLANGE BEARING	£3.44	Add
043	741-3065B	BRG HEX FLG .628 ID SPLIT	£6.54	Add
044	747-04812	ROD:CNTRL:REV:A-SHIFT	N/A	POA
045	747-04813	ROD:CONT:REV:A-SHIFT	£10.65	Add
046	747-04814	ROD:CNTRL:FWD:A-SHIFT	£23.37	Add
047	747-04886637	ROD:KEEPR:REV:AUTOMATIC 747-04886	£28.72	Add
048	747-04889	ROD:KEEPR:REV	N/A	POA
049	747-04890	ROD:CONT:DUMP:AUTOMATIC	£31.04	Add
050	747-04956	ROD:KEEPR:AUTOMATIC REWORK	N/A	POA
051	750-04456	SPACER	£5.75	Add
052	750-04584	SPCR:.375 ID x.625 OD x 1.34	£4.85	Add
053	750-04962	SPCR:14mm OD x 10 mm ID	£5.91	Add
054	750-04988	SPCR:D20MM x 5MM x 18mm LG	£5.00	Add
055	754-04223	DRIVE BELT	£55.23	Add
056	756-04224	IDLER PULLEY	£28.15	Add
057	756-04241	PULLEY	£28.01	Add
058	756-04411	NO LONGER AVAILABLE	N/A	POA
059	783-04536B-S	BRKT:PED:SUPT: LT-5	£14.02	Add
060	783-05734	BRKT:SUPT:IDLR:REV	N/A	POA
061	783-05867	BRKT:MT:REV:PED:AUTOMATIC	N/A	POA
