MTD010704

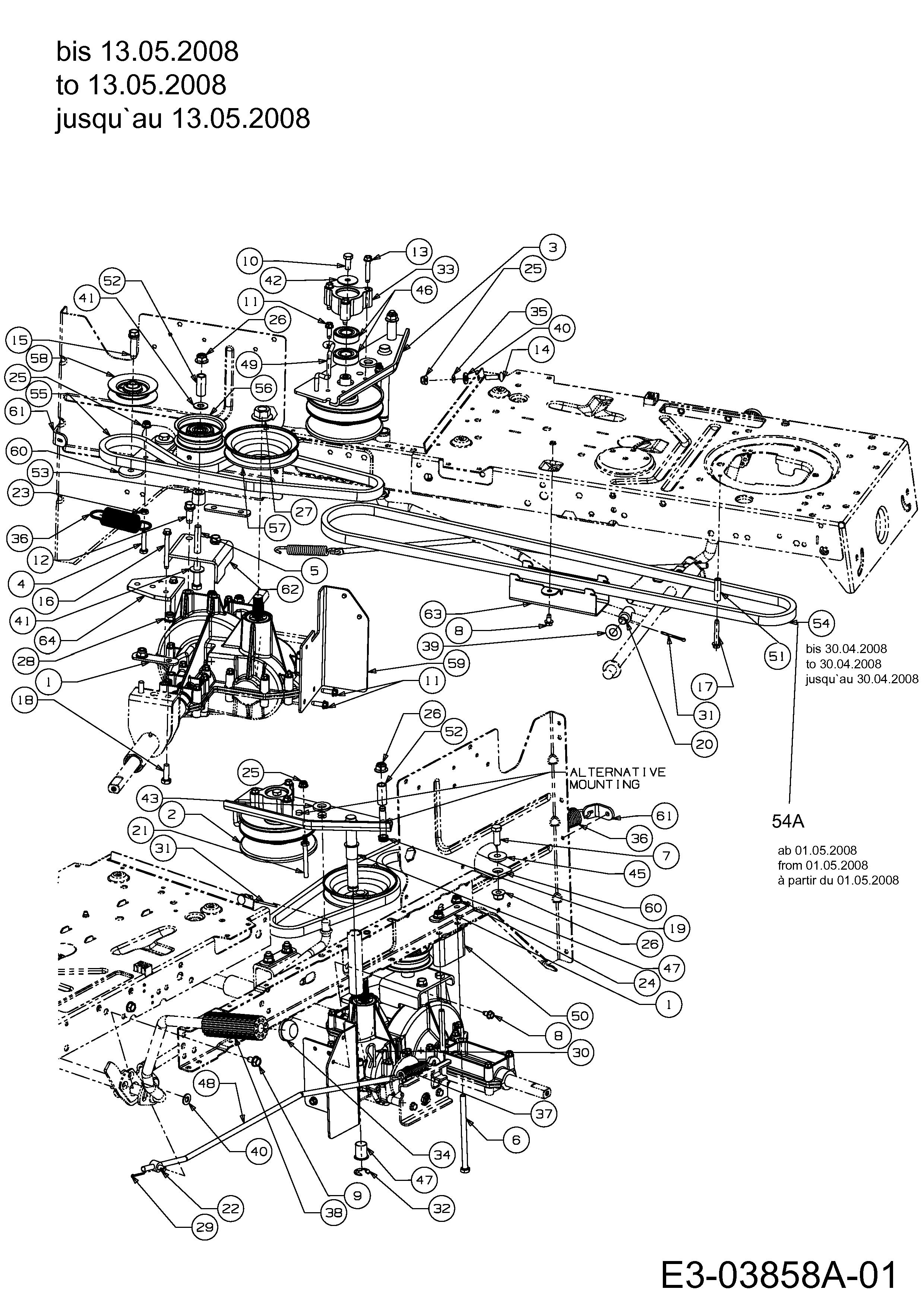

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010704

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17840 TRANSAXLE BRACKET REINFORCE £12.77 Add
002 656-04015B PULLEY £61.30 Add
003 683-04429637 BRKT ASM IDLR:VARI:RR DIS LT-5 £35.93 Add
004 710-0106 HHCS:1/4-20:1.25:GR5:SPEC £3.93 Add
005 710-0411 SCREW HHCS:3/8-16:4.00:GR5:STD £6.26 Add
006 710-04469 HEX.SCREW 5/16-18X5.00:GR5:STD £3.66 Add
007 710-0514 HEX BOLT £3.22 Add
008 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
009 710-0604A SCREW £3.50 Add
010 710-0627 HEX SCREW £2.81 Add
011 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
012 710-0654A SCR:TTSEMS:3/8-16:1.000:HXLWSH £4.80 Add
013 710-0778 HEX WASHER HEAD SCREW £2.71 Add
014 710-0932 SCR:CRG:1/4-20:1.00:GR1 £7.07 Add
015 710-1007 SCREW HEX HD TAP £3.48 Add
016 710-1206 SCREW SELF TAP £3.12 Add
017 710-1325 SCR:TT:1/4-20:1.625:HXINDWSH £3.51 Add
018 710-1682 SCR:M8-1:25.00 LG:DIN 933 £3.02 Add
019 710-3144 SCREW £2.94 Add
020 711-04036 FERRULE £7.85 Add
021 711-04826 ROD:KEEPER:.25 DIA X 2.35 LG £7.99 Add
022 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
023 712-0298 NUT:JAM:1/4-20:GR2 £3.07 Add
024 712-04063 NUT £3.54 Add
025 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
026 712-04065 NUT UTV £1.60 Add
027 712-0700 NUT:FLANGE:9/16-18:GR2 £15.98 Add
028 712-0714 NUT:FLGLK:M8-1.25 DIN 6926 £3.57 Add
029 714-0111 COTTER PIN £2.71 Add
030 714-0209 INTERNAL COTTER PIN .125 DIA £3.73 Add
031 714-0470 COTTER PIN £2.50 Add
032 716-0106A RING E TYPE .625 DIA SHAFT £2.82 Add
033 718-04261 BEARING HOUSING £12.80 Add
034 726-0214 PUSH CAP £4.51 Add
035 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
036 732-04505 SPR:EXTN:1.00 DIA x 3.925 LG £10.89 Add
037 732-0716D SPRING EXTENSION £12.05 Add
038 735-0239 FOOT PAD £6.34 Add
039 736-0272 WASHER:FL:.510 X 1.000 X .060 £2.95 Add
040 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
041 736-0300 WASHER £2.39 Add
042 736-0362 WASH-FLAT:.330 x 1.25 x.06:HD £4.62 Add
043 736-3019 WASHER FLAT £4.52 Add
045 738-0347 SPACER £3.50 Add
046 741-0124 BEARING BALL N/A POA
047 741-0591 FLANGE BEARING £2.90 Add
048 747-04815 ROD:BRAKE:RR DIS LT-5 £34.16 Add
049 747-04897B-S ROD:KEEPR:FWD:RR DIS LT-5 747-04897 N/A POA
050 748-04175 SPCR:T-AXLE 1.82 £7.66 Add
051 750-04456 SPACER £4.84 Add
052 750-04962 SPCR:14mm OD x 10 mm ID £7.16 Add
053 750-04988 SPCR:D20MM x 5MM x 18mm LG £5.69 Add
054 754-04170 BELT:V TYPE:5L x 66,96 LG PLY £49.44 Add
055 754-04171 BELT £31.20 Add
056 756-04224 IDLER PULLEY £23.48 Add
057 756-04298 PUL:5.00 DIA x 5/16 PINS £33.57 Add
058 756-04324 IDLER PULLEY £20.14 Add
059 783-05705 BRACKET-TRANSAXLE SUPPORT £16.17 Add
060 783-05714 BRKT:IDLER:FWD:RR DIS LT-5 £21.04 Add
061 783-05844 BRKT:MT:SPR:RR DIS LT5 £7.69 Add
062 783-05855 BRKT:SUPT:TRANS:FIXED IDLER N/A POA
063 783-05882 BRKT:KEEPR:FWD:RR DIS LT-5 £7.53 Add
064 783-1363-Z BRKT:MT:HITCH 783-1363 £11.88 Add
54A 754-04211 V BELT £68.92 Add
