MTD010493

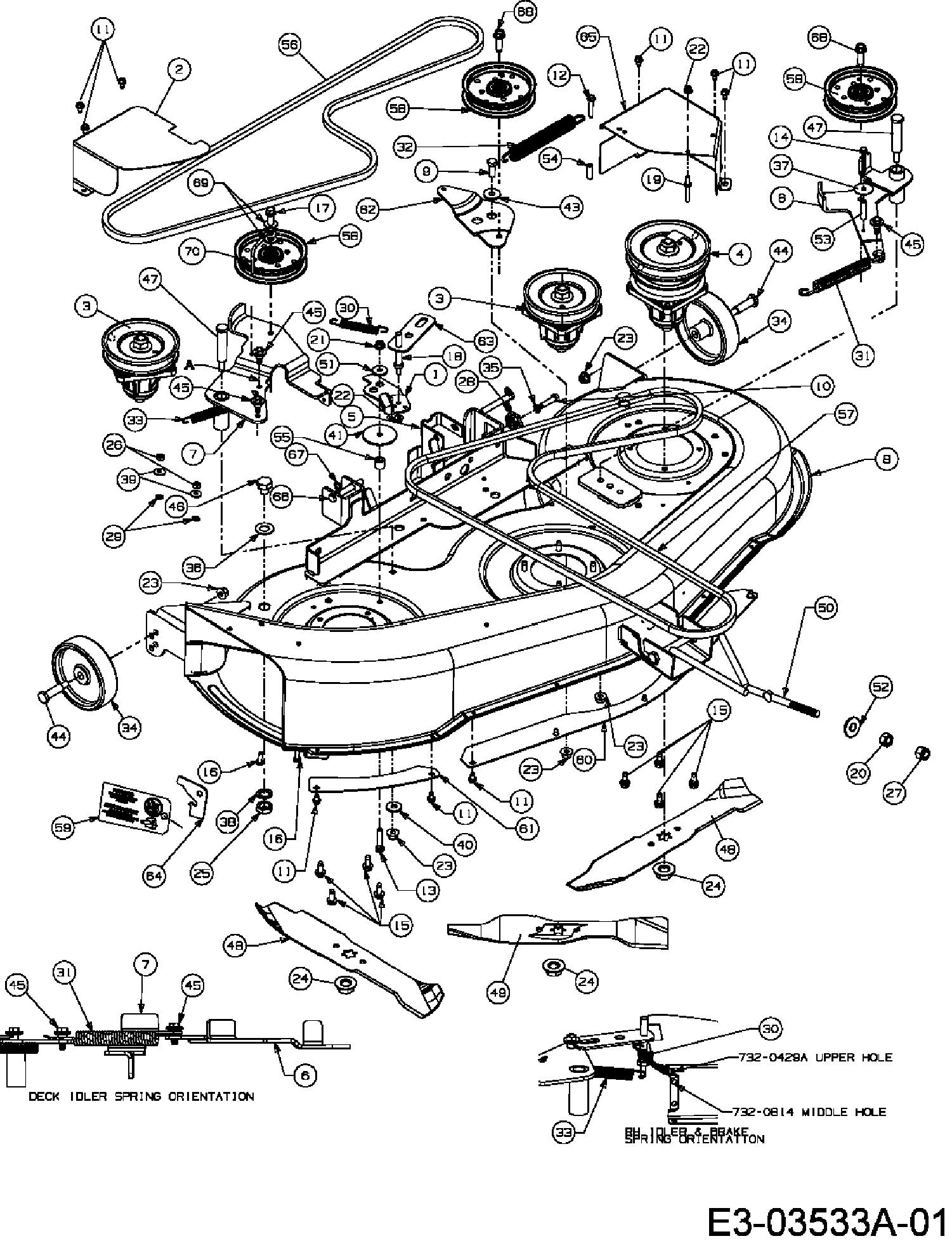

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	97116-MTD	BRAKE BRACKET	£35.85	Add
002	17258E	COVER BELT RH	£53.66	Add
003	618-0430A	SPINDLE ASM-W/FTG 5.75"DIA PUL	N/A	POA
004	618-04134B	SPINDLE ASM:DPL PUL LT 46"	£144.09	Add
005	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
006	683-04250A	BRACKET ASM-46" LH IDLER	N/A	POA
007	683-04251A	BRACKET ASM-46" RH IDLER	N/A	POA
008	683-04306	DECK ASM-SD:46"	N/A	POA
009	710-0514	HEX BOLT	£3.81	Add
010	710-0528	SCREW (DNR)	£3.55	Add
011	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
012	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
013	710-0805	SCRE.HHCS:5/16-18:1.50:GR5:STD	£4.71	Add
014	710-1026	SCREW	£3.91	Add
015	710-1260A	SCREW	£4.00	Add
016	710-3015	SCREW HEX CAP	£3.33	Add
017	710-1007	SCREW HEX HD TAP	£4.14	Add
018	711-04636	PIN 1/4-20:3/8X2.685	N/A	POA
019	711-0993	BELT GUARD PIN Ò1/4 x 1.43	£4.50	Add
020	712-0206	NUT	£3.42	Add
021	712-04063	FLANGED NUT	£4.20	Add
022	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
023	712-04065	NUT	£4.02	Add
024	712-05134	BLADE NUT	£3.81	Add
025	712-0641	NUT	£6.47	Add
026	712-3006	NUT	£2.77	Add
027	712-3083	NUT	£2.79	Add
028	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
029	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
030	732-0429A	SPRING EXTENSION	£8.73	Add
031	732-04400	SPR:EXTN:.75 OD x 6.835 LG	£17.76	Add
032	732-0594A	EXTENSION SPRING	£25.17	Add
033	732-0814	SPRING 56 DIA x 5.52 LG	£11.51	Add
034	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
035	736-0119	LOCK WASHER 5/16	£3.33	Add
036	736-0187	FLAT WASHER	£3.19	Add
037	736-0211	WASHER:FLAT:.285 x 1.250 x.060	£3.91	Add
038	736-0225	WASHER (RED)	£5.32	Add
039	736-0270	BELL WASHER	£3.91	Add
040	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
041	736-0418A	FLAT WASHER .34 ID X 2.25 OD X	£5.81	Add
043	738-0347	SPACER	£4.16	Add
044	738-0373	AXLE BOLT	£6.84	Add
045	738-04091	SCR:SHLDR:.43x.29:TT:5/16-18	£4.49	Add
046	738-04146	PLUG:BOLT:M16 X 1.5	£8.94	Add
047	738-04216A	BOLT:SHLDR:.625x2.515:3/8-16	£25.14	Add
048	742-0611A	BLADE MULCH	£33.13	Add
049	742-0612A	MULCH BLADE	£32.63	Add
050	747-04645	ROD-DECK 46" FRONT	£41.30	Add
051	748-0234	SHOULDER SPACER	£5.43	Add
052	748-04069	PIVOT CUP	£4.12	Add
053	750-04456	SPACER	£5.75	Add
054	750-0566A	SPACER	£7.75	Add
055	750-1320	SPACER 0.37X0.63X0.5	N/A	POA
056	754-0349	V-BELT	£50.51	Add
057	754-04122	BELT:V-TYPE: A SEC X 90.0	£44.30	Add
058	756-04129C	PUL:IDLR:4.25" DIA 756-04129	N/A	POA
059	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
060	783-0141	CENTER DECK SKIRT	£59.79	Add
061	783-0142	R.H. DECK SKIRT	£54.84	Add
062	783-04641A	BRACKET	N/A	POA
063	783-05321	BRACKET-BRAKE 46"	N/A	POA
064	783-1025	STOP:CHUTE	£7.30	Add
065	783-1348D	BELT COVER LH 46"	N/A	POA
066	711-04669	pillar	£13.16	Add
067	714-04043	COTTER PIN	£4.29	Add
068	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
069	736-0300	WASHER	£2.81	Add
070	747-04530	ROD KEEPER	£19.05	Add
