MTD016984

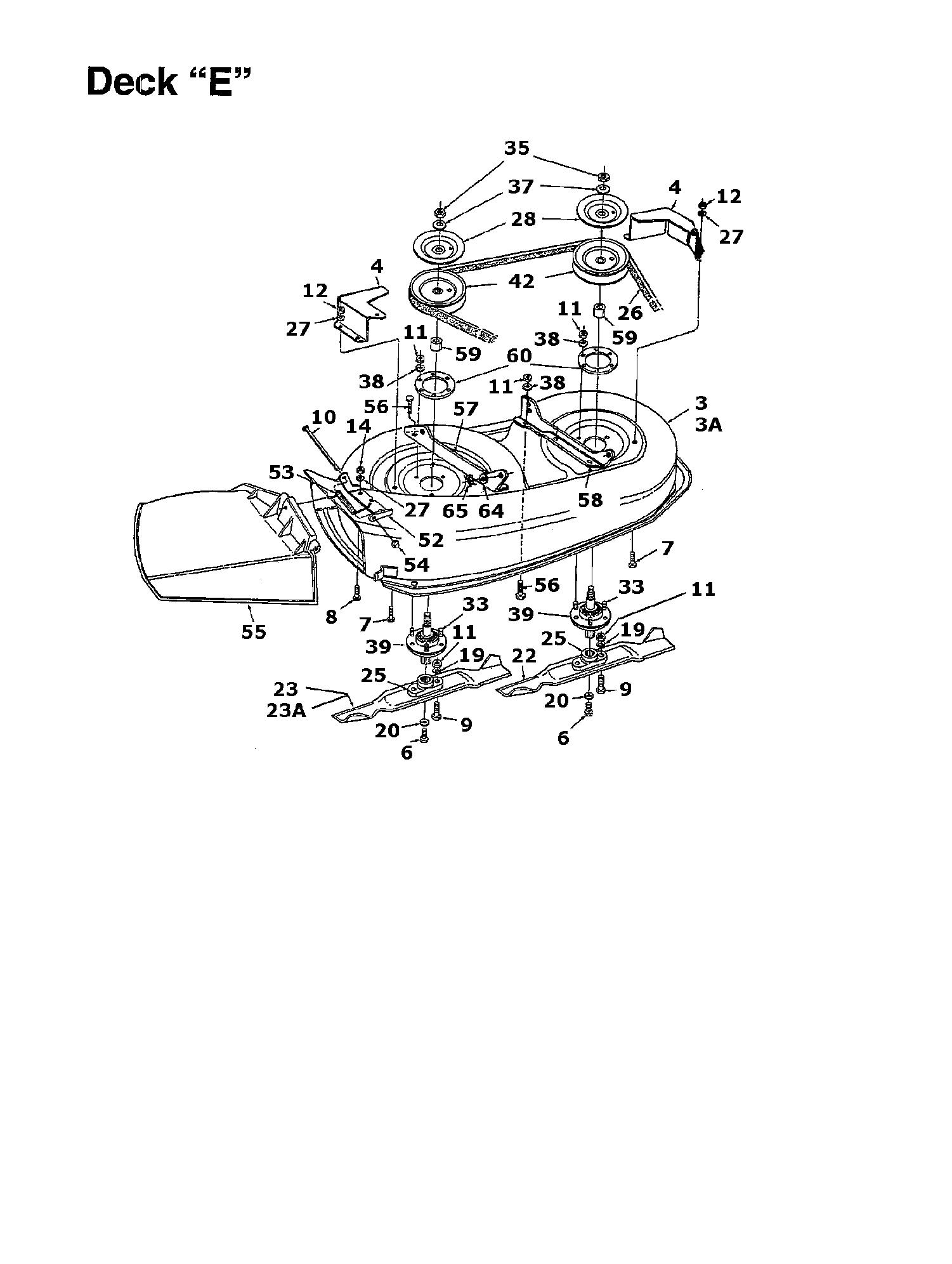

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016984

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
003 16879B637 KIT-26IN DECK ASSY 16879A N/A POA
004 683-0095637 GUARD-BELT 683-0095 £59.08 Add
006 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £2.78 Add
007 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
008 710-0751 BOLT 069 £2.68 Add
009 710-0888 HEX SCR SPECIAL £4.16 Add
010 711-0792 HINGE PIN £10.31 Add
011 712-3057 NUT 5/16-24 £2.35 Add
012 712-0138 NUT £2.57 Add
014 712-0287 NUT HEX £2.59 Add
019 736-0119 LOCK WASHER 5/16 £2.81 Add
020 736-0217 H.L. WASHER (RED) £4.12 Add
022 742-0496A BLADE £28.18 Add
023 742-0496A BLADE £28.18 Add
025 748-0300 BLADE ADAPTOR £16.90 Add
026 754-0364 BELT:V TYP:BX68.04 LG KEVLAR £82.87 Add
027 736-0270 BELL WASHER £4.50 Add
028 09322 Monobolt 1/4 £10.24 Add
033 710-1012 BOLT:RIBBED:HD 5/16-24 x.87"LG £3.89 Add
035 712-0318 NUT £3.32 Add
037 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.44 Add
038 736-0242 BELL WASHER £3.14 Add
039 753-05405 SPINDLE KIT £58.63 Add
03A 913-040008-S DECK B 36" 813-040008 N/A POA
042 756-0486 PULLEY £37.09 Add
052 703-1693A CONNECTING PLATE 703-1693 £25.95 Add
053 732-0602A SPRING £4.37 Add
054 726-0106 CAP SPEED NUT £2.82 Add
055 631-0220B CHUTE ASSY £30.79 Add
056 710-0157 HHCS:5/16-24:.75:GR5:STD £3.38 Add
057 17572637 BRKT:DECK R.H. £32.00 Add
058 17571637 BRKT:DECK L.H. 17571 £44.50 Add
059 750-0456 SPACER .790 ID X .347 LG. £6.91 Add
060 09164A637 PLATE-REINFORCEMENT £18.68 Add
064 736-0185 FLAT WASHER (RED) £3.04 Add
065 714-0104 PIN INTERNAL COTTER £2.36 Add
23A 742-0507A BLADE-18.37IN-EXPORT 742-0507 £33.08 Add
