MTD007908

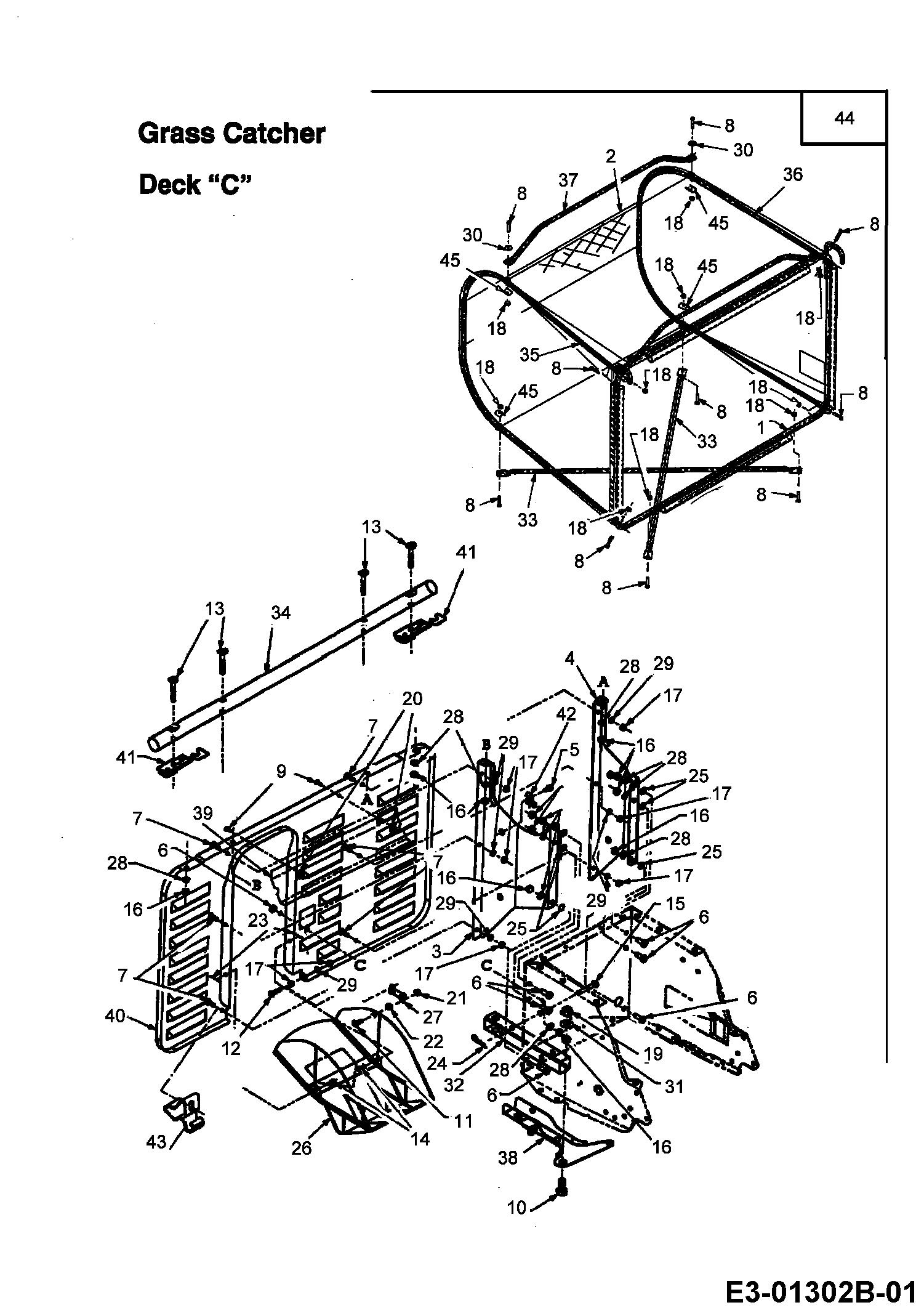

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007908

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 649-0011637 TUBE ASSY CATCHER £103.09 Add
002 664-0073B BAG ONLY £142.18 Add
003 683-0106A637 BRKT ASM:SUPT:GRSCTCH:R.H 683-0106A £45.70 Add
004 683-0105 BRKT ASM:SPRT:LH GRASSCTCH £37.76 Add
005 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
006 710-3008 HEX BOLT £2.57 Add
007 710-0751 BOLT 069 £2.68 Add
008 710-1194 SCREW 10/24 x 1.00 DX60 CATCHER £4.16 Add
009 710-1388 SCREW £2.74 Add
010 710-1701 SCREW HEX M12x25 DIN 933-8.8 £5.40 Add
011 710-0134 BOLT £2.57 Add
012 710-0597 HEX SEMS SCREW £2.52 Add
013 710-1174 BOLT CURVED HEAD £3.25 Add
014 711-0701 CLEVIS PIN £4.12 Add
015 711-0679A CLEVIS PIN £5.62 Add
016 712-3010 NUT 5/16 x 18 £2.35 Add
017 712-3006 NUT £2.35 Add
018 712-0161 NYLOK NUT #10-24 £3.84 Add
019 712-0630 NUT: HEX:M12-1.75:DIN 934-8 £3.41 Add
020 712-0147 NUT:SPEED CLIP:#10-24:U-TYPE N/A POA
021 712-0291 LOCK-NUT £2.35 Add
022 712-0271 NUT:SEMS:1/4-20 £2.68 Add
023 714-0507 COTTER PIN 3/32 DIA £2.65 Add
024 714-0147 COTTER PIN £2.96 Add
025 726-0201 SPEED NUT £2.61 Add
026 731-1606B CHUT:dis:30" RD DECK £37.27 Add
027 732-0755 EXT SPRING £5.64 Add
028 736-0119 LOCK WASHER 5/16 £2.81 Add
029 736-0329 L. WASHER £1.28 Add
030 736-0400 FLAT WASHER .194x.620Dx.63TH £3.18 Add
031 736-0253 WASH:BLVL:.525 x 1.000 x.050 £3.12 Add
032 749-0966637 HITCH TUBE 400 749-0966 £52.39 Add
033 749-0964637 TUBE 1/2 X 29.51 BLACK £19.74 Add
034 749-0963637 TUBE:1.25 DIA X 29.4 LG 749-0963 £19.28 Add
035 749-04227637 SIDE FRAME (R.H.) £39.60 Add
036 749-04226637 SIDE FRAME (LH) £39.60 Add
037 749-0962A637 HANDLE £13.26 Add
038 783-0286637 BRACKET-HITCH EXT (OBSOLETE) N/A POA
039 783-0308637 SHIELD:GRASS 783-0308 £10.14 Add
040 783-0278A637 BACK PLATE BLACK £119.39 Add
041 15995A GRASS CATCHER SUPPORT PLATE N/A POA
042 16606-Z BRKT:HOOK:RETAINER 16606 £4.94 Add
043 732-0838A SPRING £5.84 Add
044 913-04196 GRASS CATCHER CPL £366.26 Add
045 736-0764-Z WASHER REINFORCE £6.71 Add
