MTD007330

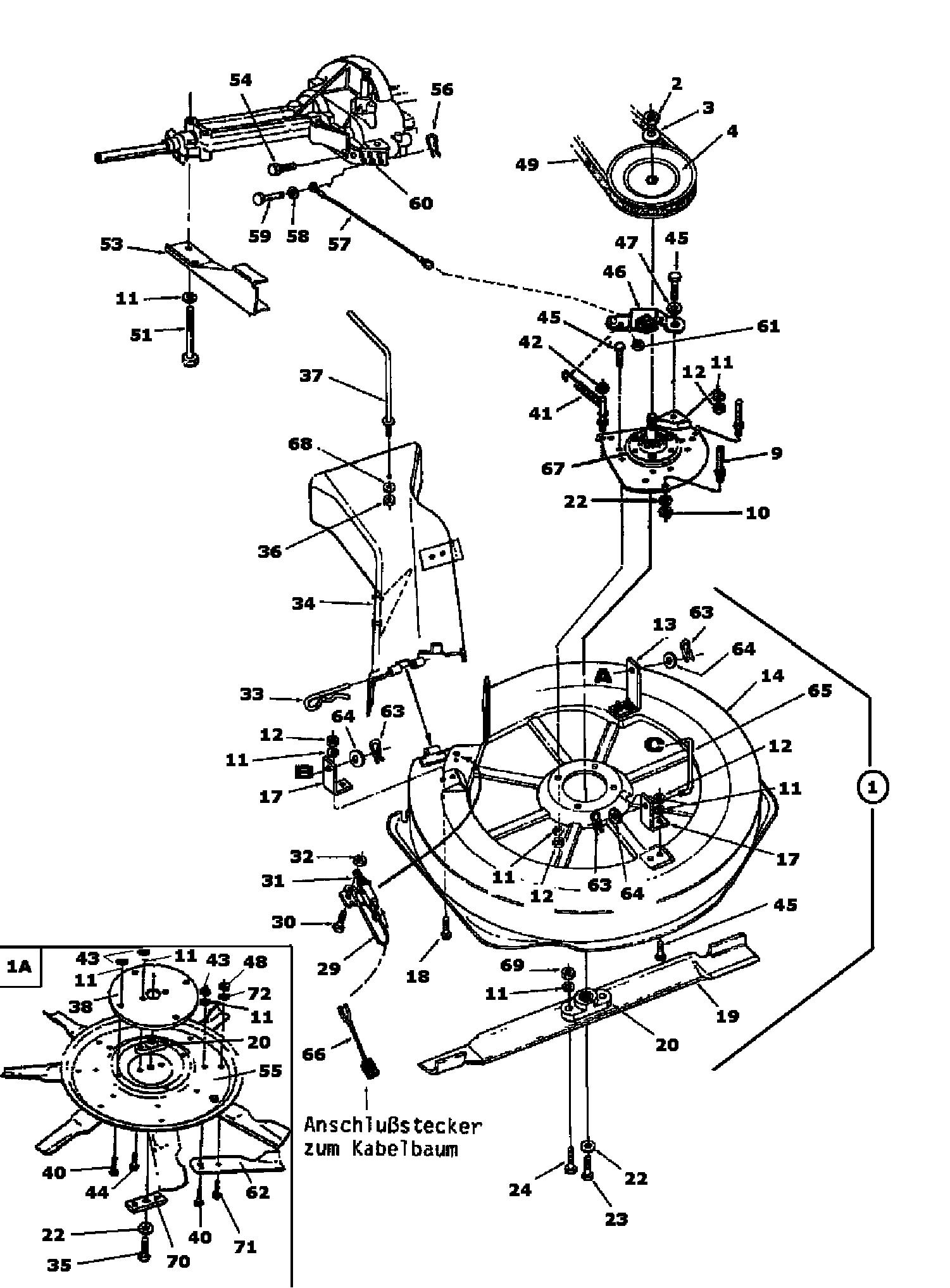

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007330

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 813-05110 USE 913-06119 N/A POA
002 712-0318 NUT £3.32 Add
003 736-0317 BELLE WASHER £7.19 Add
004 756-0430 PULLEY £76.78 Add
009 711-0640 STUD 3/8-16 X 2.75" LG. £8.58 Add
010 712-0342 NUT-HEX CENTER AF-43082 £7.37 Add
011 736-0119 LOCK WASHER 5/16 £2.81 Add
012 712-3010 NUT 5/16 x 18 £2.35 Add
013 16706 HANGER BRKT. 3.25" £10.86 Add
014 15906 GEHAEUSE VOLLST. 092.15.514 (OBSOLETE) N/A POA
015 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
017 16705 HANGER BRKT. 2.25" £5.88 Add
018 710-0323 SCREW £4.33 Add
019 742-0256A blade 092.15.515 (OBSOLETE) N/A POA
01A 801-6765 BLADE ASSY-8 TIP 3 16765 N/A POA
020 748-0300 BLADE ADAPTOR £16.90 Add
022 736-0217 H.L. WASHER (RED) £4.12 Add
023 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £2.78 Add
024 710-0888 HEX SCR SPECIAL £4.16 Add
026 712-3057 NUT 5/16-24 £2.35 Add
029 725-0765 WIRE-REV LOCKOUT £9.14 Add
030 710-0289 HHCS:1/4-20:.50:GR2:STD £19.48 Add
031 725-0269 SWITCH-SAFETY £33.85 Add
032 712-0287 NUT HEX £2.59 Add
033 714-0174 PIN-COTTER 092.15.519 £11.52 Add
034 16094A CHUTE ASSY. 092.15.520 £197.40 Add
035 710-0879 BOLT £14.42 Add
036 736-0271 WASHER £2.68 Add
037 747-0474 (OBSOLETE) N/A POA
038 742-0494-0637 WASHER:REINFORCE 742-0494 N/A POA
040 710-0237 HEX SCREW £4.67 Add
041 732-0157 Spring 090.47.595 £17.54 Add
042 726-0201 SPEED NUT £2.61 Add
043 712-0237 HEX CENTRE NUT £7.19 Add
044 710-0672 HHCS:5/16-24:1.25:GR5:STD £3.36 Add
045 710-3008 HEX BOLT £2.57 Add
046 16053 BLADE BRAKE BRKT. ASS'Y. N/A POA
047 748-0234 SHOULDER SPACER £4.57 Add
048 712-0117 NUT:CTR LOCK:1/4-28:GR A £2.76 Add
049 754-0264 V-BELT £29.26 Add
051 710-0176 HHCS:5/16-18:2.75:GR5:STD £7.37 Add
053 15625B LOWER INSIDE BELT GUARD 15625 N/A POA
054 710-0289 HHCS:1/4-20:.50:GR2:STD £19.48 Add
056 714-0104 PIN INTERNAL COTTER £2.36 Add
057 727-0296 BRAKE CABLE 9.75" LG. £9.89 Add
058 736-0142 WASHER:FLAT:.281 x.50 x.063 £3.89 Add
059 711-0701 CLEVIS PIN £4.12 Add
060 15626B LOWER INSIDE BELT GUARD 15626A N/A POA
061 726-0106 CAP SPEED NUT £2.82 Add
062 742-0495B BLADE £15.30 Add
063 714-0145 R CLIP £2.46 Add
064 736-0160 WASH:FLAT:.530x.930x.050 £2.95 Add
065 747-0428 DECK LINK 3.9" LG. N/A POA
066 725-1037 WIRE LEAD £8.81 Add
067 717-0916 BLADE SPINDLE ASS'Y. COMP. (OBSOLETE) N/A POA
068 736-0231 WASHER FLAT £2.82 Add
069 712-3057 NUT 5/16-24 £2.35 Add
070 753-0478 SPACER-BLADE 12626A (OBSOLETE) N/A POA
071 710-0195 HEX BOLT £2.50 Add
072 736-0329 L. WASHER £1.28 Add
