MTD006325

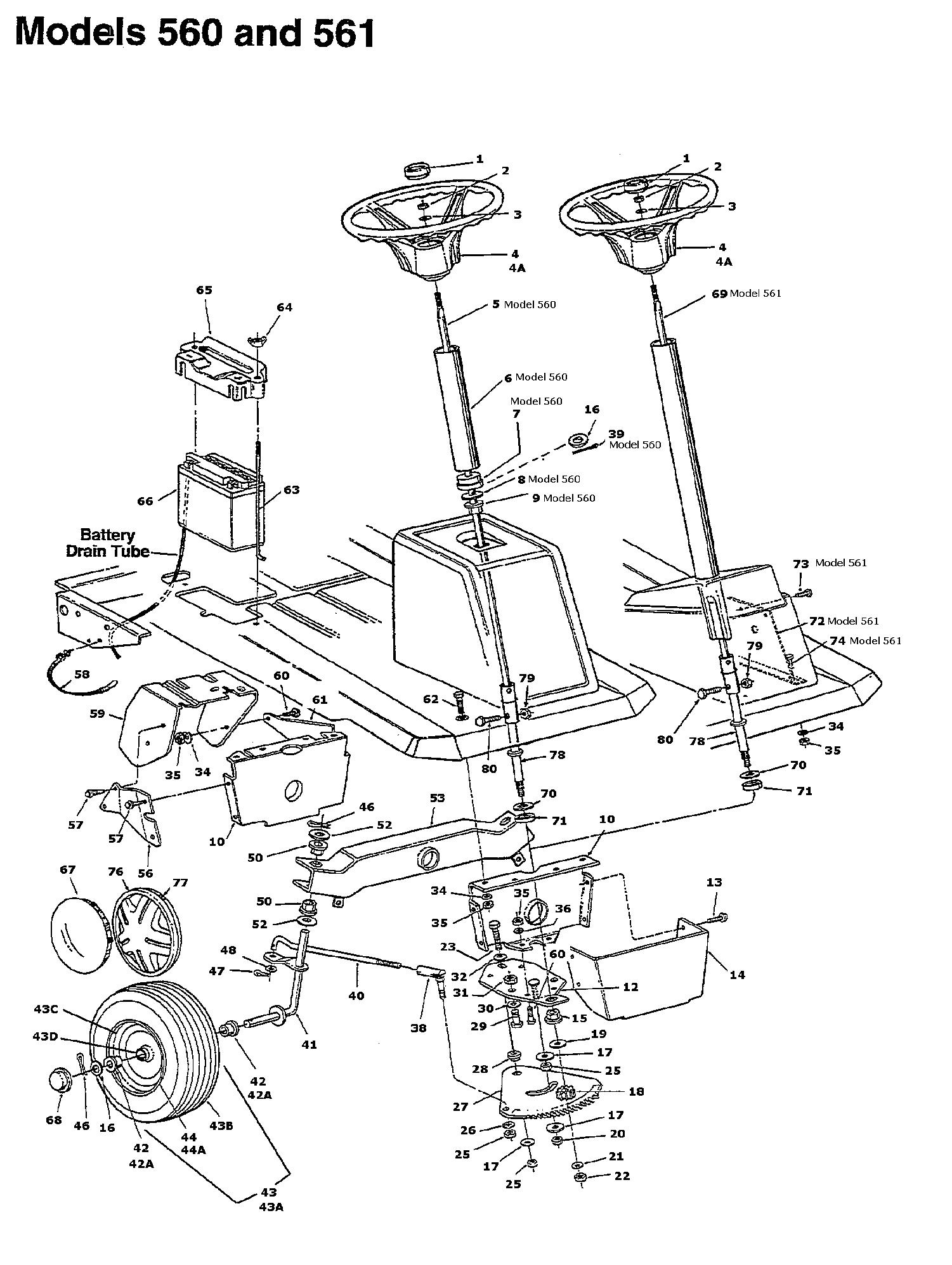

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD006325

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-0220 STEERING WHEEL CAP £7.40 Add
002 712-0237 HEX CENTRE NUT £7.19 Add
003 736-0242 BELL WASHER £3.14 Add
004 731-0806A STEERING WHEEL 731-0805 (OBSOLETE) (OBSOLETE) N/A POA
005 683-0035 STEERING SHAFT ASS'Y. £102.87 Add
006 750-0568 STEERING TUBE SPACER (CHROME) £28.53 Add
007 731-0651 STEERING TUBE SPACER £6.15 Add
008 736-0187 FLAT WASHER £2.70 Add
009 741-0225 HEX FLANGE BEARING £4.14 Add
010 15613B PIVOT BAR BRACKET 15613 £29.92 Add
012 683-0045 STEERING GEAR SUPPORT BRKT. N/A POA
013 710-0776A SCREW-HEX WASH HD £3.57 Add
014 15608 STEERING GEAR COVER N/A POA
015 741-0225 HEX FLANGE BEARING £4.14 Add
016 736-0285 FLAT WASHER £3.43 Add
017 736-0320 WASH:FLAT:.380 x.1.380 x.125 £5.54 Add
018 748-0290 PINION £10.68 Add
019 736-0272 WASHER:FL:.510 X 1.000 X .060 £2.67 Add
020 712-0116 HEX NUT £3.12 Add
021 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
022 712-3057 NUT 5/16-24 £2.35 Add
023 710-0459A TIE ROD BOLT £3.07 Add
025 712-0241 HEX NUT 3/8-24 £2.38 Add
026 736-0169 L. WASHER £2.45 Add
027 717-0472A STEERING GEAR SEGMENT 717-0472 £60.74 Add
028 738-0541 SPCR:STRG:SHLD £5.26 Add
029 710-0689 HEX.SCREW HHCS:1/2-13:.75NYLON £6.25 Add
030 736-0160 WASH:FLAT:.530x.930x.050 £2.95 Add
031 712-0206 NUT £2.89 Add
032 736-0105 BELL WASHER £2.82 Add
034 736-0119 LOCK WASHER 5/16 £2.81 Add
035 712-3010 NUT 5/16 x 18 £2.35 Add
036 736-0271 WASHER £2.68 Add
038 723-0156 BALL JOINT 3/8-24 £19.34 Add
039 714-0115 COTTER PIN £2.89 Add
040 747-0417 STEERING TIE ROD N/A POA
041 683-0012 FRONT AXLE ASS'Y.--R.H. 15616A £64.79 Add
042 741-0487C FLANGE BEARING £4.81 Add
043 634-0147 WHEEL ASSY £85.87 Add
044 734-1455A RIM N/A POA
046 714-0470 COTTER PIN £2.50 Add
047 714-0115 COTTER PIN £2.89 Add
048 736-0300 WASHER £2.39 Add
04A 731-0806A STEERING WHEEL 731-0805 (OBSOLETE) (OBSOLETE) N/A POA
050 741-0225 HEX FLANGE BEARING £4.14 Add
052 736-0156 WASHER £4.57 Add
053 15610C PIVOT BAR ASS'Y. 15610 £376.20 Add
056 15694A BRACKET REINFORCEMENT--R.H. 15694 £12.79 Add
057 710-0776A SCREW-HEX WASH HD £3.57 Add
058 726-0154 TIE:CABLE:PUSH MOUNT 7.5 LG £5.69 Add
059 17677 CLUTCH-BRAKE PEDAL ASS'Y. N/A POA
060 710-3008 HEX BOLT £2.57 Add
061 15699A-0637 BRACKET REINFORCEMENT--L.H. 15699A N/A POA
062 710-3008 HEX BOLT £2.57 Add
063 711-0222A ROD-TIE £15.47 Add
064 712-0113 WING NUT 090.65.360 N/A POA
065 731-0708 BATTERY COVER (OBSOLETE) (OBSOLETE) N/A POA
066 EPB3117 BATTERY 12N14-3A (DRY) £39.80 Add
067 734-1219 CHROME HUB CAP (OPTIONAL) £61.27 Add
068 731-0484A HUB CAP £4.36 Add
069 683-0034 STEERING SHAFT ASS'Y. £97.16 Add
070 736-0187 FLAT WASHER £2.70 Add
071 750-0532 SPACER £4.08 Add
072 16069 REINF. BRKT. ASS'Y. £3.27 Add
073 710-0323 SCREW £4.33 Add
074 710-0116 SCREW-HEX £7.82 Add
076 734-1610A HUB CAP--BEIGE (OPTIONAL) 734-1610 N/A POA
077 727-0425A SPRING CLIP £2.49 Add
078 738-3089A ADAPTER STEERING COLUMN £59.66 Add
079 712-0324 HEX. INS L NUT £1.36 Add
080 710-0958 HHCS:1/4-20:1.25:GR5:SPEC N/A POA
41A 683-0011 FRONT AXLE ASS'Y.--L.H. (NOT SHOWN) 15617A £105.94 Add
42A 741-0569 BALL BEARING £15.78 Add
43A 734-1686 FRONT WHEEL ASS'Y. COMP. (11 X 4.0 BALL BRG.) £179.51 Add
43B 325958 TIRE 11.0X4.0X4.0 £15.98 Add
43C 734-0255 VALVE - TUBELESS AIR £5.89 Add
43D 737-0280 FITTING-GREASE £4.72 Add
44A 734-1683 RIM ASM:4.0 x 3.25 x 1.37 (OBSOLETE) N/A POA
76A 734-1611 HUB CAP--GREY (OPTIONAL) 734-1502 £24.72 Add
