MTD016278

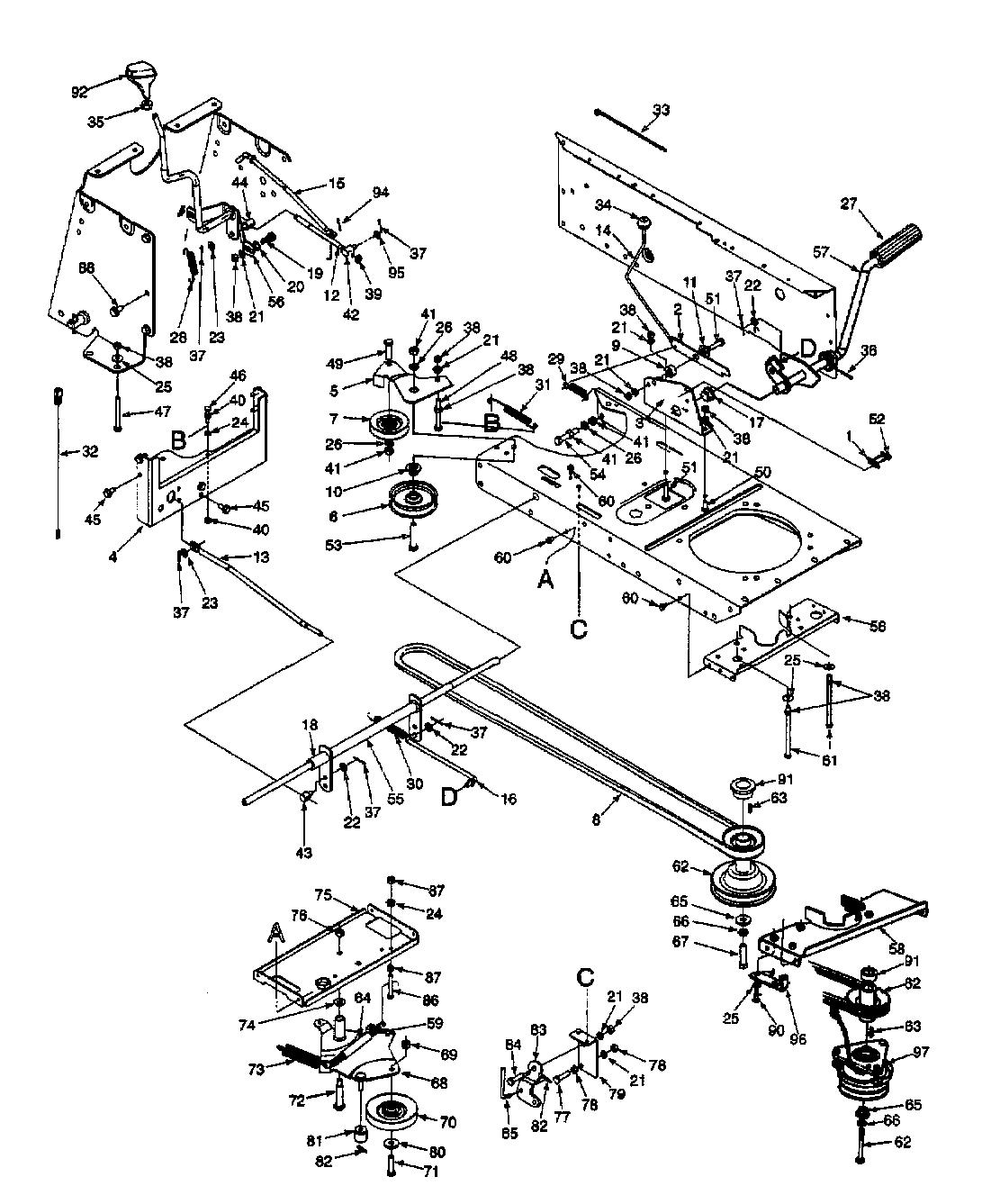

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17962	PLT:SW	£4.66	Add
002	16980A	BRAKE LOCKOUT	£8.85	Add
003	16924A	CLUTCH ASS'Y. MTG. BRACKET	£18.75	Add
004	783-0402	BRACKET: TRANSMISSION	£50.84	Add
005	783-0467	BRACKET PULLEY MOUNTING	£19.14	Add
006	756-0515	PULLEY-IDLER-FLAT	£39.38	Add
007	756-04213	PULLEY	£19.77	Add
008	754-0461	BELT, V TYPE, POLY	£52.73	Add
009	750-0214	SPACER .34" I.D.	£5.52	Add
010	748-0403	SPACER-SHOULDER .380 OD	£4.55	Add
011	748-0234	SHOULDER SPACER	£5.43	Add
012	747-0934	ROD-VAR SP CLUTCH	N/A	POA
013	747-0935	ROD-NEUTRAL RETURN	£29.31	Add
014	747-0644	NO LONGER AVAILABLE	N/A	POA
015	747-0936	ROD-HYDRO DISENGAGE	£30.96	Add
016	747-0724A	BRAKE BAR	£32.72	Add
017	741-0225	HEX FLANGE BEARING	£4.92	Add
018	741-0491	BEARING-NYLINER	£12.94	Add
019	738-3024	NO LONGER AVAILABLE	N/A	POA
020	736-0141	WASH:SPR:.440 x.750 x.015	£3.39	Add
021	736-0119	LOCK WASHER 5/16	£3.33	Add
022	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
023	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
024	736-0329	L. WASHER	£3.26	Add
025	736-0242	BELL WASHER	£3.72	Add
026	736-0169	L. WASHER	£2.89	Add
027	735-0239A	FOOT PAD	£8.75	Add
028	732-0433	NO LONGER AVAILABLE	N/A	POA
029	732-0395	SPRING-EXTENSION	£17.52	Add
030	732-0470A	EXTENSION SPRING	£11.07	Add
031	732-0840	SPR:EXTN: .50 DIA x 4.97 LG	£6.88	Add
032	725-1399	WIRE	£6.35	Add
033	725-0157	NO LONGER AVAILABLE	N/A	POA
034	720-0166	KNOB:BALL:1.06 DIA	£6.30	Add
035	712-3008	NUT:JAM:3/8-16:GR5	£3.26	Add
036	714-0115	COTTER PIN	£3.42	Add
037	714-0111	COTTER PIN	£3.20	Add
038	712-3010	NUT 5/16 x 18	£2.77	Add
039	712-3045	NUT HEX JAM	£3.16	Add
040	712-3006	NUT	£2.77	Add
041	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
042	711-1132	FERRULE-5/16 LH X .312	£12.86	Add
043	711-1155	FRL:5/16-18X.312:HT.TR.	£10.93	Add
044	710-0832		N/A	POA
045	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
046	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
047	710-0189	HHCS:5/16-18:3.00:GR5:STD	£4.62	Add
048	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add
049	710-0344	NO LONGER AVAILABLE	N/A	POA
050	710-3008	HEX BOLT	£3.03	Add
051	710-0528	SCREW (DNR)	£3.55	Add
052	710-0589	SET SCREW	£2.97	Add
053	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
054	710-3144	SCREW	£3.28	Add
055	650-0006	CROSS BRACKET TUBE ASSY.	N/A	POA
057	647-0025	PEDAL ASSY	N/A	POA
058	17358D	GUARD-BELT	£24.61	Add
059	732-0308	EXTENSION SPRING	£10.04	Add
060	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
061	710-0833	SCREW-HEX	£22.44	Add
062	756-0637	PULLEY-ENGINE	£79.42	Add
062	756-0636	NO LONGER AVAILABLE	N/A	POA
063	714-0118	KEY:SQ:1/4 X 1.50	£5.50	Add
063	714-0128	KEY-SQ:1/4:1.00	£7.41	Add
064	731-0757-4	CONDUIT:CONVOLUTED .50 ID 731-0757	£43.33	Add
065	736-0322	FI-WASH	£8.68	Add
065	738-0785	SPCR:SHLDR:1.38x.445x.36	£17.18	Add
066	736-0171	WASHER	£2.93	Add
067	710-0757	HEX SCREW	£7.96	Add
067	710-1049	HHCS:7/16-20:3.75:GR5:STD	£6.32	Add
068	14076A	IDLER BRACKET DECK ASSY	£102.21	Add
069	712-0214	HEX NUT	£3.55	Add
070	756-0487	PULLEY	£37.22	Add
071	710-0459A	TIE ROD BOLT	£3.62	Add
072	738-0129	NO LONGER AVAILABLE	N/A	POA
073	732-0478	EXT. SPRING DECK CONTROL	£16.63	Add
073	732-0180	EXTENSION SPRING	£17.76	Add
074	736-0105	BELL WASHER	£3.33	Add
075	16888A	DECK IDLER SUPPORT BRKT.	£35.75	Add
076	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK	£3.51	Add
077	710-0672	HHCS:5/16-24:1.25:GR5:STD	£3.51	Add
078	712-3057	NUT 5/16-24	£3.00	Add
079	13833A	BRACKET-BRAKE MTG	£9.22	Add
080	736-0300	WASHER	£2.81	Add
081	748-0278	SPACER	£12.08	Add
082	714-0104	PIN INTERNAL COTTER	£2.78	Add
083	13887A	DECK CONTROL PIVOT BRACKET	£15.67	Add
084	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add
085	747-0708A	DECK CONTROL ROD 747-0708	£7.82	Add
086	710-0501	HHCS:1/4-20:2.0:GR5:STD	£3.91	Add
087	712-0287	NUT HEX	£3.31	Add
088	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
090	710-3008	HEX BOLT	£3.03	Add
091	711-3301	SPACER	£27.24	Add
092	631-0009A	KNOB:SHIFTER:3/8-16 THRD	£9.83	Add
094	714-0104	PIN INTERNAL COTTER	£2.78	Add
095	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
096	17418	BRACKET-CABLE	£13.87	Add
097	717-1434	CLUTCH-ELECTRIC	£564.52	Add
