MTD015489

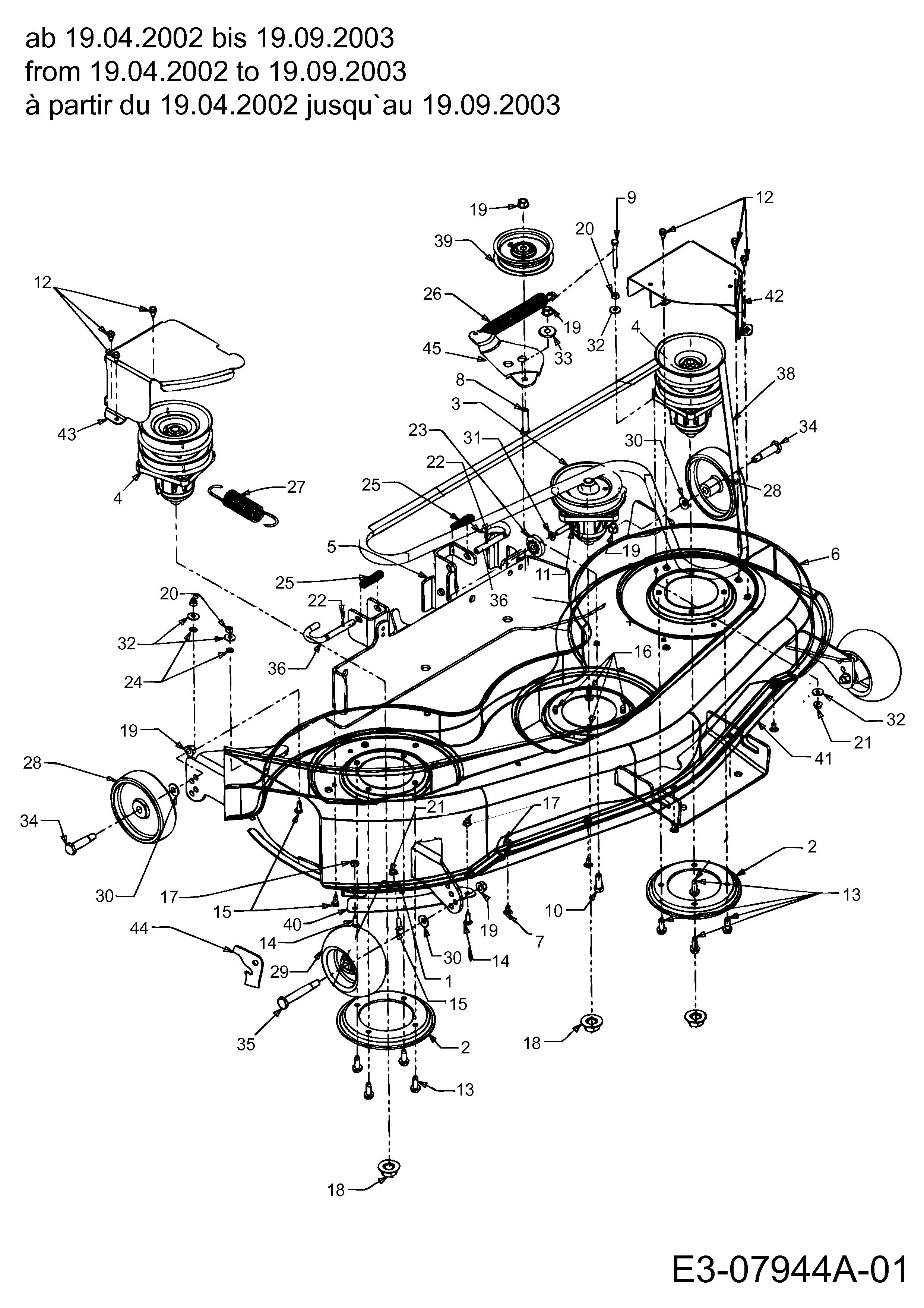

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	17982	PLATE-SPINDLE	£37.67	Add
003	618-0430A	SPINDLE ASM-W/FTG 5.75"DIA PUL	N/A	POA
004	618-0431	SPINDLE ASM-DBL PUL W/FTG	£222.57	Add
005	683-0254B637	BRKT:ASM:DECK:HNGR LH LT BLACK	£30.23	Add
006	683-0324		N/A	POA
007	710-0167	SCR:CRG:1/4-20:.50:	£2.97	Add
008	710-0347	HEX SCR	£3.72	Add
009	710-0501	HHCS:1/4-20:2.0:GR5:STD	£3.91	Add
010	710-0514	HEX BOLT	£3.81	Add
011	710-0528	SCREW (DNR)	£3.55	Add
012	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
013	710-0650	SCREW	£3.58	Add
014	710-0703	SCR:CRG:1/4-20:.75:GR5	£3.07	Add
015	710-0751	BOLT 069	£3.39	Add
016	710-1260A	SCREW	£4.00	Add
017	712-0271	NUT:SEMS:1/4-20	£3.03	Add
018	712-05134	BLADE NUT	£3.81	Add
019	712-0431	NUT	£3.20	Add
020	712-3006	NUT	£2.77	Add
021	712-3027	LOCK NUT	£2.79	Add
022	714-0470	COTTER PIN	£5.07	Add
023	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
024	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
025	732-0306A	SPACER	£5.28	Add
026	732-0594A	EXTENSION SPRING	£25.17	Add
027	732-0934	SPR:EXTN:1.15 OD x 5.99 LG	£17.69	Add
028	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
029	753-04856A	WHEEL, 5*quot; DECK 734-3058	£18.48	Add
030	736-0105	BELL WASHER	£3.33	Add
031	736-0119	LOCK WASHER 5/16	£3.33	Add
032	736-0270	BELL WASHER	£3.91	Add
033	738-0347	SPACER	£4.16	Add
034	738-0373	AXLE BOLT	£6.84	Add
035	738-3056	SHOULDER BOLT	£12.94	Add
036	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
038	754-0476	BELT-PTO 46"DECKS	£107.72	Add
039	756-0627D	PUL:IDLR:FLAT 3.5 OD	£27.53	Add
040	783-0142	R.H. DECK SKIRT	£54.84	Add
041	783-0264	ROD	£73.80	Add
042	783-0747B	BELT COVER, LH	£50.36	Add
043	783-0805C	BELT COVER, RH	£31.23	Add
044	783-1025	STOP:CHUTE	£7.30	Add
045	783-0139B	BRKT:IDLR:CENTER DBL 783-0139A	£38.66	Add
