MTD012212

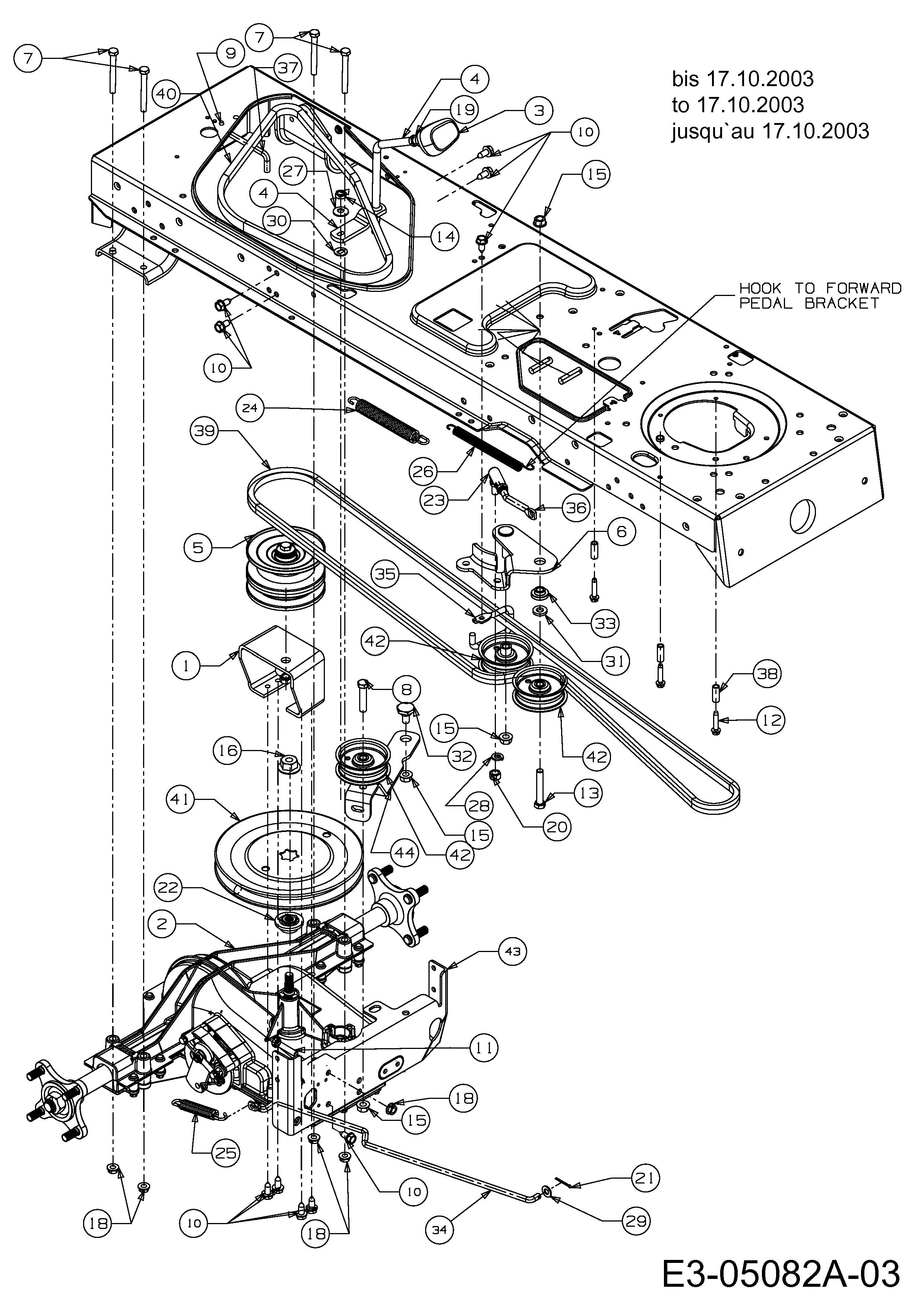

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012212

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-0375 BRACKET ASSY-VAR SPD N/A POA
002 618-0376A TRANSMISSIONE COMP 2 SPEED £1,569.47 Add
003 631-0009A KNOB:SHIFTER:3/8-16 THRD £7.55 Add
004 647-0037 SHIFT LEVER N/A POA
005 656-0050 BELT PULLEY £216.66 Add
006 683-04000-Z BRACKET ASSY-IDLER 683-0251 N/A POA
007 710-0176 HHCS:5/16-18:2.75:GR5:STD £7.37 Add
008 710-0347 HEX SCR £3.14 Add
009 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
010 710-0726 HEX SCREW AB 5/16-12:0.750 £3.01 Add
011 710-0805 SCRE.HHCS:5/16-18:1.50:GR5:STD £4.08 Add
012 710-0809 SCR:TT:1/4-20:1.250:HXINDWSH £2.94 Add
013 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
014 712-0181 HEX JAM L NUT £2.89 Add
015 712-0431 NUT £2.71 Add
016 712-0702 Nut £19.79 Add
017 712-0711 NUT £2.59 Add
018 712-3004A HEX FLANGE NUT £2.52 Add
019 712-3008 NUT:JAM:3/8-16:GR5 N/A POA
020 712-3017 NUT:JAM:3/8-16:GR5 £2.49 Add
021 714-0111 COTTER PIN £2.71 Add
022 718-0771A HUB PULLEY £12.40 Add
023 723-3018 BALL JOINT £20.04 Add
024 732-0478 EXT. SPRING DECK CONTROL £12.36 Add
025 732-0716D SPRING EXTENSION £12.05 Add
026 732-0963 SPRING £8.15 Add
027 736-0105 BELL WASHER £2.82 Add
028 736-0169 L. WASHER £2.45 Add
029 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
030 736-0642 washer £4.68 Add
031 736-3010 WASH:FL:.407x.812x.135:HD £2.85 Add
032 738-0322A SCR:SHLD:.625 DIA x.217 £12.89 Add
033 738-0372B COLLAR £4.74 Add
034 747-04136 N/A POA
035 747-1123A TENSIONER £28.38 Add
036 747-1127 ROD,ENGAGEMENT ASSY. £17.77 Add
037 747-1185 ROD-TRANS BELT GUARD N/A POA
038 750-0566A SPACER £6.49 Add
039 754-0467A V BELT £81.80 Add
040 754-0468 BELT £50.75 Add
041 756-0665 PULLEY TRANS £93.04 Add
042 756-04224 IDLER PULLEY £23.48 Add
043 783-0667B BRACKET-TRANS TORQUE N/A POA
044 783-0669 BRACKET ASSY-IDLER £30.05 Add
