MTD009512

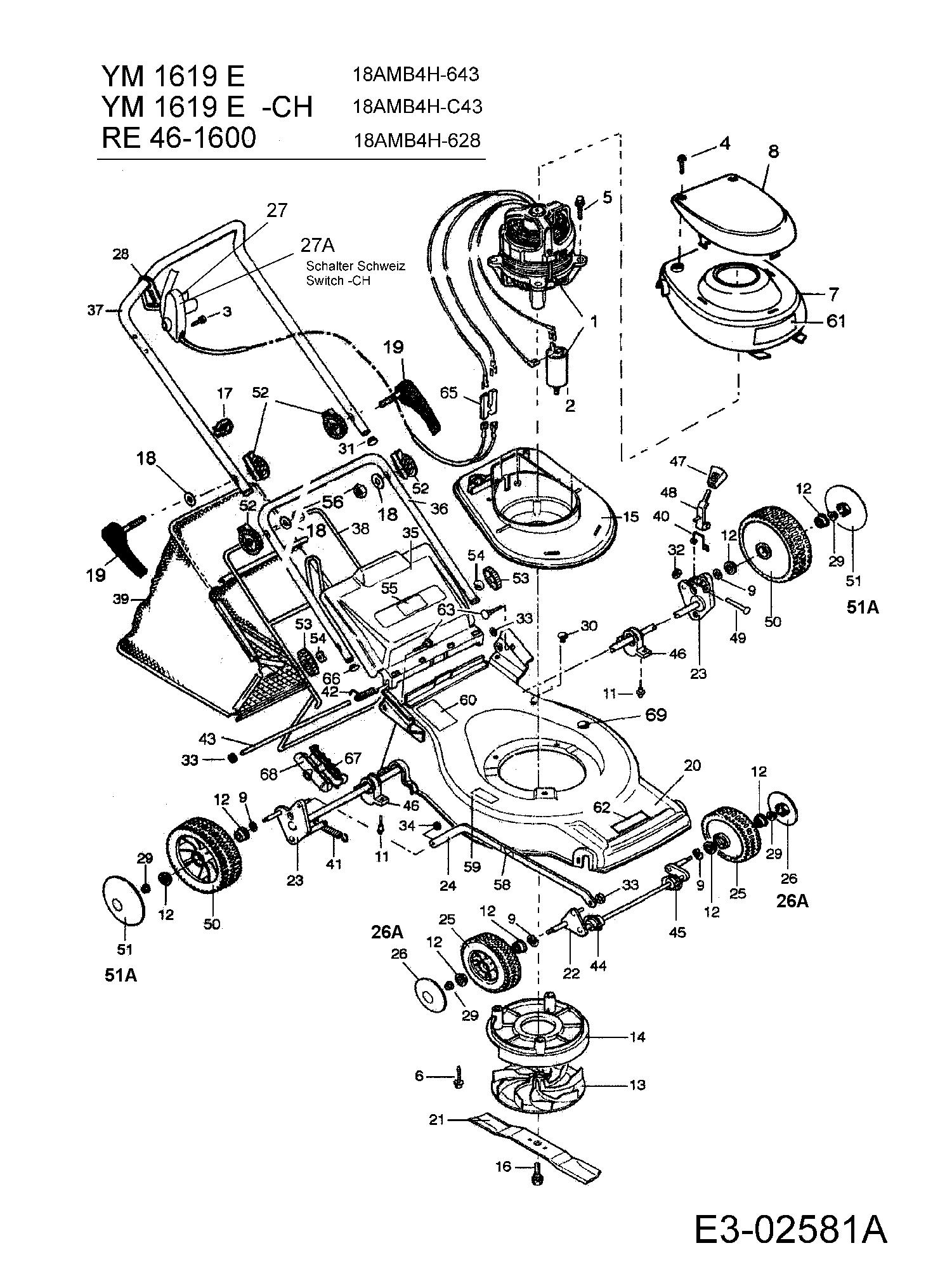

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009512

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 CP017160F ENGINE £285.13 Add
002 CP019820 CONDENSER £75.30 Add
003 CP023925 SCREW N/A POA
004 CP025030 SCREW N/A POA
005 CP026030 SCREW £3.11 Add
006 CP026322 SCREW N/A POA
007 CP032102.31 COVER £61.53 Add
008 CP032103.05 BOARDING £34.85 Add
009 CP032813 LOCK WASHER £2.29 Add
011 CP034615 RIVET AL 5,9X15 £2.97 Add
012 CP038227 BALL BEARING £8.16 Add
013 CP040158 FLYWHEEL £49.61 Add
014 CP040174 HOUSING-FAN £57.82 Add
015 CP040175.05 HOUSING £70.29 Add
016 CP040209 SCREW £16.29 Add
017 CP050222 CLAMP,CABLE £3.44 Add
018 CP032924 washer £3.73 Add
019 CP047224 BAR £21.21 Add
020 CP047001.31 HOUSING £157.31 Add
021 CP047010 BLADE 45CM £26.71 Add
022 CP047048 AXLE-FRONT PIVOT £65.66 Add
023 CP047053 AXLE £81.89 Add
024 CP047063 ROD-DISENGAGEMENT N/A POA
025 CP050106 WHEEL £29.58 Add
026 CP050127.31 COVER £8.38 Add
027 CP042185 CP042185 £59.07 Add
028 CP042222 CABLE BRACKET £10.89 Add
029 CP042808 SPECIAL NUT M8 £3.14 Add
030 CP045713 PLUG £3.38 Add
031 CP045720 CAP N/A POA
032 CP046606 CLAMP RING £2.97 Add
033 CP046607 CP046607 £2.36 Add
034 CP046608 DISK N/A POA
035 CP047018 REAR FLAP £61.70 Add
036 CP047032 BAR £70.29 Add
037 CP047038 CP047038 £72.26 Add
038 CP047078 FRAME £62.16 Add
039 CP047083.05 GRASS BAC TISSUE £98.35 Add
040 CP047191 BRACKET SPRING £11.17 Add
041 CP047192 SPRING EXTENSION £16.29 Add
042 CP050192 LEG SPRING £11.20 Add
043 CP047203 HINGE PIN £11.62 Add
044 CP047212 AXLE BEARING £9.65 Add
045 CP047213 AXLE BEARING £9.65 Add
046 CP047214 AXLE BEARING £11.62 Add
047 CP047236 GRIP £10.41 Add
048 CP047255 CONTROL LEVER SHVS £33.85 Add
049 CP047267 PIN-FRIC DISC BRG £3.57 Add
050 CP050110 WHEEL £47.55 Add
051 CP050132.31 WHEELCOVER GELB N/A POA
052 CP050212 HANDLE REGULATOR £11.95 Add
053 CP050228 WING NUT £11.62 Add
054 CP050230 WASHER £3.11 Add
055 CP053714 LABEL N/A POA
056 712-0692 HEX NUT £2.57 Add
058 CP053802 LABEL N/A POA
059 CP053806 LABEL £4.33 Add
060 CP053813 LBL:IDENTIFICATION £11.49 Add
061 CP053896 LABEL N/A POA
062 CP053859.02 LABEL N/A POA
063 CP040860 BOLT-RD HD RID NECK £4.62 Add
065 CP019910 CLIP N/A POA
066 CP045722 CAP PLASTICS £3.11 Add
067 CP042212M HALF-ISOLATOR £6.31 Add
068 CP042212F HALF-ISOLATOR £7.99 Add
069 CP045721 CAP, FRONT CORNER £7.91 Add
26A CP050127.23 HUBCUP SILVERGREY £12.86 Add
27A CP042183 CP042183 £73.58 Add
51A CP050132.23 HUBCUP SILVERGREY £17.22 Add
