MTD009593

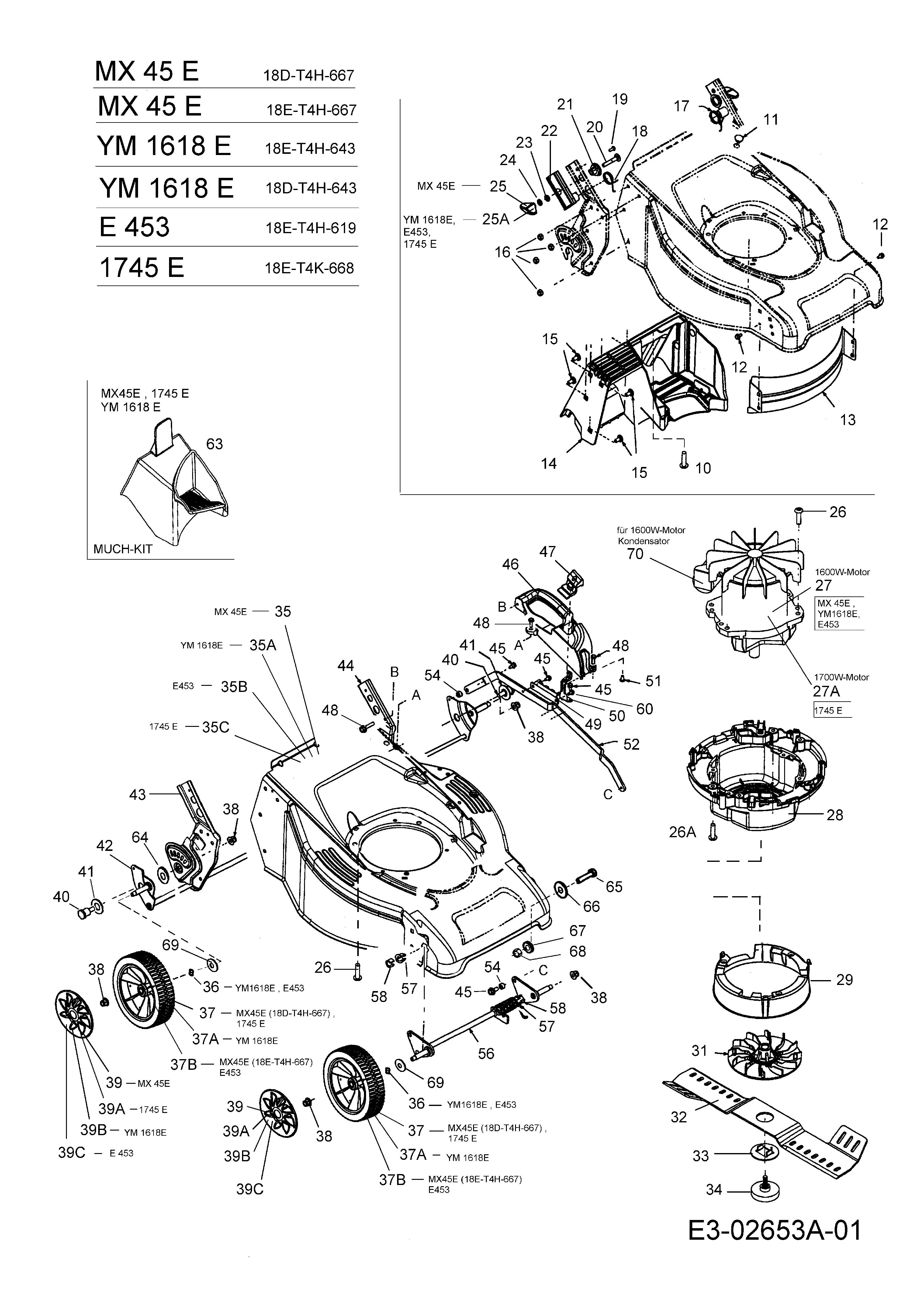

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
010	710-1704	SCR:TORX:M6x20 WN 1452	£4.62	Add
011	731-05512	PLUG:DECK HOLE	£3.39	Add
012	710-04203A	SCR:M6x1:12 MM:DIN 7500	£5.19	Add
013	787-01173A	NO LONGER AVAILABLE	N/A	POA
014	731-05479	BFL:RR:T DECK	£23.21	Add
015	710-04217	SCR:SHLDR:12mm SQ:M8 CUSTOM	£4.50	Add
016	712-0692	HEX NUT	£3.10	Add
017	732-04193A	NO LONGER AVAILABLE	N/A	POA
018	732-04194A	TORSION SPRING	£9.42	Add
019	710-1777	SCR:TORX:50x14:WN 1451	£3.20	Add
020	710-1719	BOLT	£4.89	Add
021	748-04036	INSULATING WASHER 079.06.307	£4.50	Add
022	731-04587A	NO LONGER AVAILABLE	N/A	POA
023	736-0700	FLAT WASHER	£2.63	Add
024	736-0689	L-WASHER	£3.26	Add
025	720-04047	WING NUT	£8.32	Add
026	710-04588	SCR:7mm x 30mm	£5.41	Add
027	724-04019	ELECTRIC MOTOR 1600W	£179.40	Add
028	731-2073B	NO LONGER AVAILABLE	N/A	POA
029	731-05487	BFL DECK CNTR	£27.17	Add
031	631-0115B	FAN ASM:ELEC:T-DECK	£33.75	Add
032	742-04026	BLADE:45cm:T-DECK	£34.16	Add
033	782-7051	LOCK PLATE	£7.01	Add
034	624-0075	BOLT ASM:BLADE:T-DECK:ELEC	£10.13	Add
035	787-01348668	DECK:45cm:CENT HA	£107.19	Add
036	736-0504	WAVE WASHER	£2.84	Add
037	734-04090	WHL:COMP:200x50:NON-BB IDLE	£21.37	Add
038	712-04074	NUT:HEX:M10x1.25 DIN 985	£2.79	Add
039	731-04751	HUBCP:WHL:T-DECK:OYSTER GRAY	£5.50	Add
040	738-04085A	M10x1.25	£5.10	Add
041	736-04116	WASH:FLAT:19mm x 40mm x 2.5mm	£3.80	Add
042	687-02109	BRKT ASM:PIVOT CENT HGT ADJ	£31.23	Add
043	787-01163637	BRKT:HNDL:RH "T" REAR DIS RWD	£26.57	Add
044	787-01164637	BRKT:HNDL:LH: "T" PUSH	£27.37	Add
045	710-04203A	SCR:M6x1:12 MM:DIN 7500	£5.19	Add
046	731-04592A	HNDL:HGT ADJ:"T" 731-04592	£27.42	Add
047	731-04596A	HEIGHT ADJUST BUTTON	£9.38	Add
048	710-04280A	SCR:M6x1:25mm:DIN 7500	£3.31	Add
049	787-01155C	HEIGHT ADJUSTER BRACKET	£11.88	Add
050	787-01156B	BRACKET	£18.66	Add
051	710-04030	SCR:HL:1/4-20:.5:PANPHI	£3.61	Add
052	787-01157B	FINISH:PAINT	£28.20	Add
054	750-04305	SPACER:6.60mm ID x9mm OD x5.69	£3.59	Add
056	687-02081	AXLE ASM:WHL	£39.66	Add
057	741-0708	BRG:FLG:HEX SPLIT .500 ID	£13.90	Add
058	750-04268	SPCR:CLIP:12.5mm ID x 13 LG (OBSOLETE)	£4.70	Add
060	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
063	731-04635	PLUG:MULCH:T-DECK	£60.59	Add
064	741-0751	HEIGHT ADJUSTMENT BEARING	£5.81	Add
065	710-1733	HEX. SCREW M8x35 DIN 933-8.8	£4.25	Add
066	736-0702	WASHER	£2.40	Add
067	736-0695B	washer	£3.20	Add
068	712-0692	HEX NUT	£3.10	Add
069	736-0651	NO LONGER AVAILABLE	N/A	POA
070	092.48.844	380691	N/A	POA
25A	720-0368	WING NUT	£5.19	Add
26A	710-04336A	SCR:7mm x 25mm	£5.19	Add
27A	724-04020	ELECTRIC MOTOR 230V 1700W	£254.34	Add
35A	787-01348665	DECK:45cm:CENT HA	£118.27	Add
35B	787-01351708	DECK:45cm:CENT HA	£108.38	Add
35C	787-01348-SM	DECK:45cm:CENT HA	£121.87	Add
37A	734-04083	WHL:COMP:500x50 IDLE ELLIPSE	£41.59	Add
37B	734-04079	WHL:COMP:500x50 IDLE ELLIPSE	£40.89	Add
39A	731-05248	HUBCP:WHL:T-DECK:BLACK	£8.73	Add
39B	731-04618	HUBCP:WHL:"T" YARDMAN W/SPRIG	£7.92	Add
39C	731-04597	HUBCP:WHL:"T"	£5.50	Add
