MTD009441

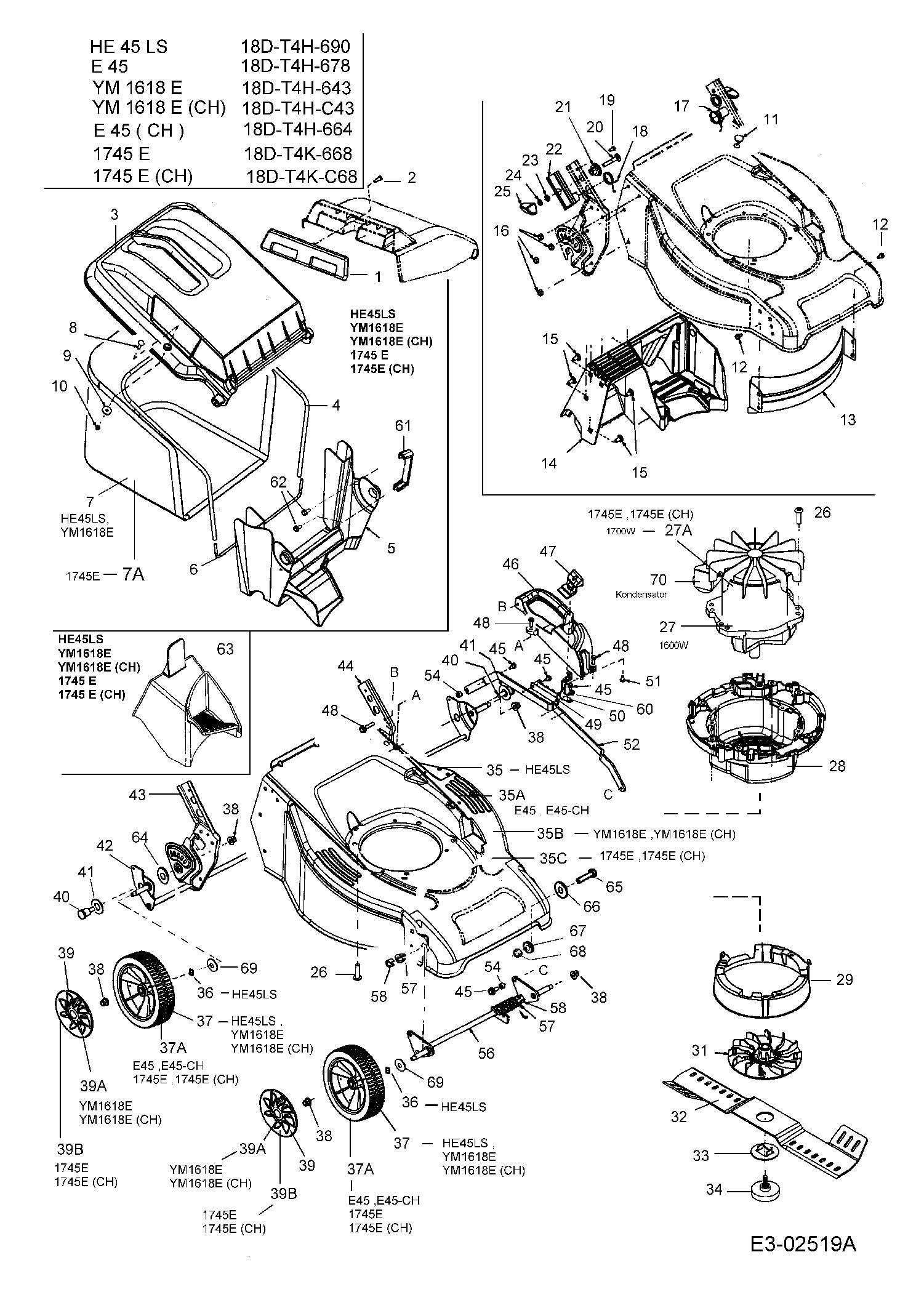

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009441

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-04661 COVER:DOOR:T-DECK BLACK £30.56 Add
002 710-1704 SCR:TORX:M6x20 WN 1452 £3.95 Add
003 731-04632A GRSBG:HRDTP:T-DECK 731-04632 N/A POA
004 749-04130 TUBE:FRM:GRSBG:T-DECK £11.12 Add
005 631-04162 GRSBG:FRT:T-DECK 731-04611 £22.84 Add
006 747-04212 ROD:FRM:GRSBG:T-DECK £11.20 Add
007 764-04044 GRSBG:CLOTH:T-DECK £34.73 Add
008 710-04220 BOLT:CRG:M6-1 x 25 mm LG £2.68 Add
009 736-0176 WASHER:FLAT:.265 x .938 x .120 £4.51 Add
010 712-0691 HEX NUT M6 DIN 985 £1.28 Add
011 731-04660 CAP £3.89 Add
012 710-04203A SCR:M6x1:12 MM:DIN 7500 £5.10 Add
013 787-01173A BFL:DECK:FRT T-DECK £19.89 Add
014 731-04630 BFL:RR:T-DECK £41.17 Add
015 710-04217 SCR:SHLDR:12mm SQ:M8 CUSTOM £5.10 Add
016 712-0692 HEX NUT £2.57 Add
017 732-04193A TORSION SPRING £8.70 Add
018 732-04194A TORSION SPRING £7.88 Add
019 710-1777 SCR:TORX:50x14:WN 1451 £3.57 Add
020 710-1719 BOLT £4.12 Add
021 748-04036 INSULATING WASHER 079.06.307 £5.10 Add
022 731-04587A HANDLE BRACKET 079.06.308 £22.13 Add
023 736-0700 FLAT WASHER £1.90 Add
024 736-0689 L-WASHER £2.66 Add
025 720-0368 WING NUT £4.36 Add
026 710-04336A SCR:7mm x 25mm £5.10 Add
027 724-0293 MTR:ELEC:1600W £186.06 Add
028 731-2073A PROTECTION BOX 731-2073 £21.99 Add
029 731-05487 BFL DECK CNTR £22.67 Add
031 631-0115B FAN ASM:ELEC:T-DECK £23.18 Add
032 742-04026 BLADE:45cm:T-DECK £26.41 Add
033 782-7051 LOCK PLATE £5.88 Add
034 624-0075 BOLT ASM:BLADE:T-DECK:ELEC £8.08 Add
035 787-01146650 DECK 18" CENTRAL HA £101.35 Add
036 736-0504 WAVE WASHER £1.26 Add
037 734-04083 WHL:COMP:500x50 IDLE ELLIPSE £38.43 Add
038 712-04074 NUT:HEX:M10x1.25 DIN 985 £3.41 Add
039 731-04750 HUBCP:WHL:T-DECK:OYSTER GRAY £4.28 Add
040 738-04085A M10x1.25 £5.86 Add
041 736-04116 WASH:FLAT:19mm x 40mm x 2.5mm £4.18 Add
042 687-02109 BRKT ASM:PIVOT CENT HGT ADJ £41.16 Add
043 787-01163637 BRKT:HNDL:RH "T" REAR DIS RWD £16.76 Add
044 787-01164637 BRKT:HNDL:LH: "T" PUSH £19.51 Add
045 710-04203A SCR:M6x1:12 MM:DIN 7500 £5.10 Add
046 731-04592A HNDL:HGT ADJ:"T" 731-04592 £33.25 Add
047 731-04596A HEIGHT ADJUST BUTTON £7.86 Add
048 710-04280A SCR:M6x1:25mm:DIN 7500 £3.57 Add
049 787-01155C HEIGHT ADJUSTER BRACKET £9.94 Add
050 787-01156B BRACKET £15.58 Add
051 710-04030 SCR:HL:1/4-20:.5:PANPHI £3.60 Add
052 787-01157A LINK:HGT:ADJ:33CM DECK £39.34 Add
054 750-04305 SPACER:6.60mm ID x9mm OD x5.69 £11.03 Add
056 687-02081 AXLE ASM:WHL £36.59 Add
057 741-0708 BRG:FLG:HEX SPLIT .500 ID £4.54 Add
058 750-04268 SPCR:CLIP:12.5mm ID x 13 LG £4.05 Add
060 710-0653 HEX SCREW, 1/4-20 X 3/8" £3.61 Add
061 720-04048 HNDL:PLASTIC £17.05 Add
062 710-1704 SCR:TORX:M6x20 WN 1452 £3.95 Add
063 731-04635 PLUG:MULCH:T-DECK £55.90 Add
064 741-0751 HEIGHT ADJUSTMENT BEARING £6.61 Add
065 710-1733 HEX. SCREW M8x35 DIN 933-8.8 £4.95 Add
066 736-0702 WASH:FLAT:10.5IDX30OD:DIN 9021 £2.42 Add
067 736-0695A WASHER £2.97 Add
068 712-0692 HEX NUT £2.57 Add
069 736-0651 Spring Washer 25x1 28.7111.50 N/A POA
070 725-1848 CONDENSER 079.13.068 £32.49 Add
07A 764-04010 GRSBG:CLOTH:T-DECK £33.96 Add
27A 724-0324 ELEKTRO-SCHIEBEMÄHER £202.51 Add
35A 787-01146638 DECK 18" CENTRAL HA £96.60 Add
35B 787-01146665 DECK 18" CENTRAL HA £96.60 Add
35C 787-01146629 DECK 18" CENTRAL HA £96.60 Add
37A 734-04090 WHL:COMP:200x50:NON-BB IDLE £31.49 Add
39A 731-04618 HUBCP:WHL:"T" YARDMAN W/SPRIG £9.36 Add
39B 731-05248 HUBCP:WHL:T-DECK:BLACK £10.27 Add
