MTD007368

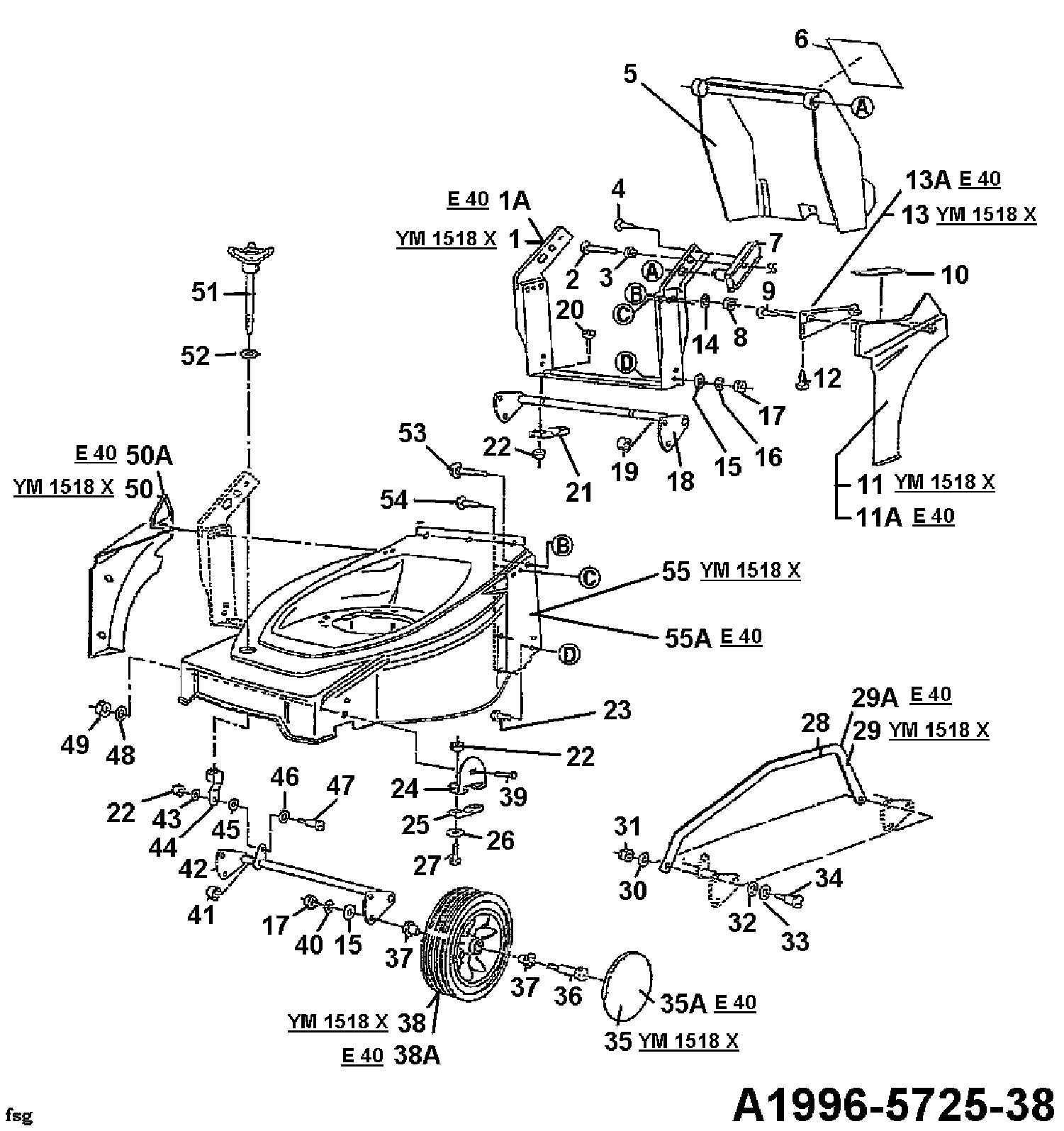

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	782-3075665	HECKBUEGEL 079.27.066	£25.57	Add
002	710-1719	BOLT	£4.89	Add
003	748-04036	INSULATING WASHER 079.06.307	£4.50	Add
004	000.02.469	SCREW (RED)	£3.20	Add
005	731-1813A637	REAR FLAP 079.26.540	£44.39	Add
006	000.57.264	HINWEISSCHILD "WARNHINWEIS"	N/A	POA
007	731-04587A	NO LONGER AVAILABLE	N/A	POA
008	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
009	000.02.583	SCREW	£3.80	Add
010	079.26.566	GLASS	£6.86	Add
011	079.26.556	RADKASTEN LINKS GRN	£13.42	Add
012	000.02.583	SCREW	£3.80	Add
013	079.26.562	RADKASTENDECKEL GRN	£9.00	Add
014	736-0757	LOCK WASHER 000.02.581	£3.49	Add
015	736-0700	FLAT WASHER	£2.63	Add
016	736-0757	LOCK WASHER 000.02.581	£3.49	Add
017	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
018	079.30.720	REAR AXEL	£86.70	Add
019	079.30.095	CLAMPING RING	£7.09	Add
01A	782-3075A638	NO LONGER AVAILABLE	N/A	POA
020	23.5421.91	Screw	£3.34	Add
021	731-2082	REAR AXLE BRACKET 079.30.261	£8.32	Add
022	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
023	710-1714	Screw 21.1441.67	£2.93	Add
024	731-2079	FRONT AXLE BEARING FORM B	£8.01	Add
025	731-2081	FRONT AXLE BRACKET	£7.30	Add
026	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
027	21.5441.16	Screw	£4.36	Add
028	000.51.124	KLEBESCHILD "ANZEIGE"	N/A	POA
029	682-0239665	CONNECTING ROD 079.30.770	£25.57	Add
030	736-0697	Washer 24.6486.13	£2.79	Add
031	712-0636	NUT: HEX: M4: DIN 985	£4.25	Add
032	24.6273.14	SHIM	£3.41	Add
033	24.6273.15	NO LONGER AVAILABLE	N/A	POA
034	23.5427.47	Screw	£6.63	Add
035	079.30.462	RADKAPPE NEUTRAL GELB RAL 1003	£6.43	Add
036	738-1057	SCR SHLDR	£12.24	Add
037	079.30.323	BUSHING	£8.65	Add
038	079.31.965	RAD KPL.180 MM M.KUGELLAGER	£18.93	Add
039	710-1780	Screw 22.3419.24	£2.98	Add
040	04512-50080	NO LONGER AVAILABLE	N/A	POA
041	079.30.092	CLAMPING RING	£10.34	Add
042	079.30.716	FRONT AXLE	£78.96	Add
043	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
044	079.30.678	ADJUSTING LEVER	£33.62	Add
045	736-0694	WAVED SPRING WASHER B7 DIN 137	£4.11	Add
046	24.6273.20	Shim	£4.00	Add
047	710-1710	SCREW	£5.78	Add
048	736-0757	LOCK WASHER 000.02.581	£3.49	Add
049	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
050	079.26.551	HOOD RIGHT	£13.42	Add
051	079.31.933	HANDLE	£46.73	Add
052	000.20.656	WASHER	£2.79	Add
053	710-1775	BOLT:CRG:M8-1.25x12	£4.50	Add
054	000.02.583	SCREW	£3.80	Add
055	079.27.807	RASENMAEHERDECK KPL.	£105.67	Add
11A	079.26.555	HOOD L.H	£18.92	Add
13A	079.26.561	COVER	£9.16	Add
29A	079.30.721	CONNECTING ROD	£24.95	Add
35A	079.30.461	WHEEL CAP (RED)	£7.29	Add
38A	079.31.966	WHEEL c/w No.58 (GREY)	£45.60	Add
50A	079.26.550	HOOD R.H	£18.92	Add
55A	079.27.981	DECK	£206.36	Add
