MTD007367

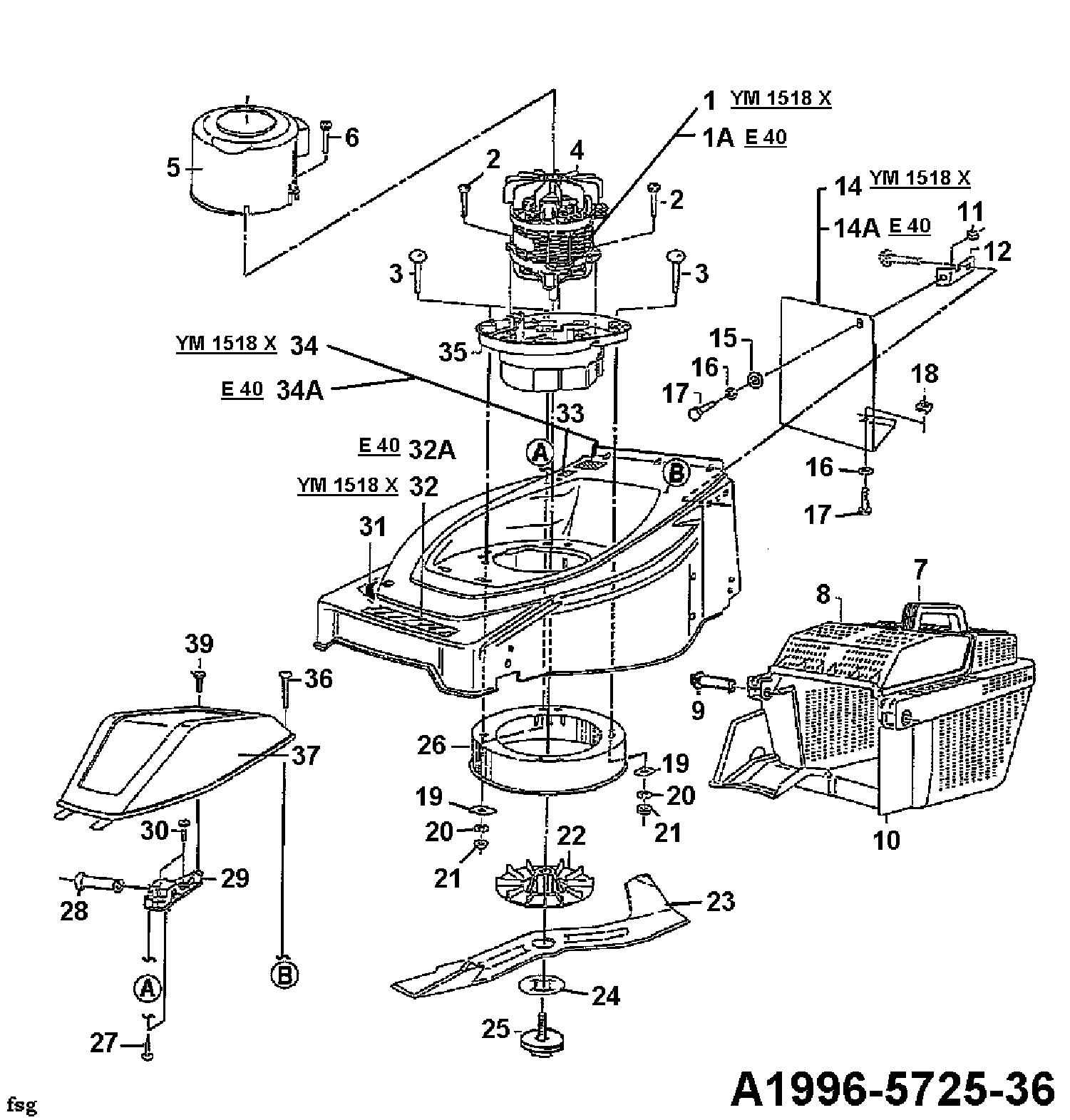

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007367

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 724-0283 ELECTRIC MOTOR 230V 1300W 079.13.657 £139.95 Add
002 000.02.495 SCREW £4.48 Add
003 710-04451 BOLT:M8x1.25x25 DIN 603 £3.02 Add
004 731-2136 FAN 079.13.003 £17.05 Add
005 079.27.054 AIR GUIDE £31.25 Add
006 710-1782 Screw 000.02.483 £3.76 Add
007 731-1816637 GRIP £12.72 Add
008 731-1815637 GRASS CATCHER HALF-ABOVE £37.86 Add
009 731-04659 BEARING BOLT ( GRASS BOX ) 731-1817637 £5.98 Add
010 731-1814637 GRASS BOX LOWER £56.00 Add
011 000.06.186 Nut £7.23 Add
012 079.27.006 BRACKET £8.35 Add
014 079.27.068 COVER PLATE £10.38 Add
015 736-0661 WASHER A 5,3 DIN 9021 £3.18 Add
016 736-0768 WASHER:LOCK:B5 DIN 127: £3.41 Add
017 710-1705 HEX. SCREW:M5X16:DIN 933 8.8 £4.41 Add
018 000.06.186 Nut £7.23 Add
019 079.26.406 battery pad £10.11 Add
01A 079.13.617 ELECTRIC MOTOR 220V 900W 079.13.602 N/A POA
020 04512-50080 Spring washer 24.8195.18 N/A POA
021 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
022 631-0100 BLADE HUB ASM £8.37 Add
023 742-0805 BLADE £26.26 Add
024 782-7051 LOCK PLATE £5.88 Add
025 624-0075 BOLT ASM:BLADE:T-DECK:ELEC £8.08 Add
026 079.25.260 RING £29.89 Add
027 000.02.583 SCREW 000.02.467 £3.21 Add
028 079.11.405 KABELDURCHFUEHRUNG £5.28 Add
029 001.10.129 Cable clamp £18.23 Add
030 000.02.370 Screw £3.73 Add
031 000.51.683 LBLI: £5.86 Add
032 000.57.315 Decal £5.98 Add
033 000.49.639 LABEL N/A POA
034 000.57.127 ERSATZTYPENSCHILD YM 1518 X N/A POA
035 079.26.596 ENGINE SUPPORT £50.63 Add
036 22.6417.89 Screw 22.6417.39 £2.35 Add
037 079.26.526 HOOD £27.76 Add
039 000.02.583 SCREW 000.02.467 £3.21 Add
14A 079.26.548 COVER PLATE £25.44 Add
32A 000.57.230 LBL:HB 42 L SIGNATURE FOR £10.60 Add
34A 000.57.184 ERSATZTYPENSCHILD E 40 N/A POA
