MTD007763

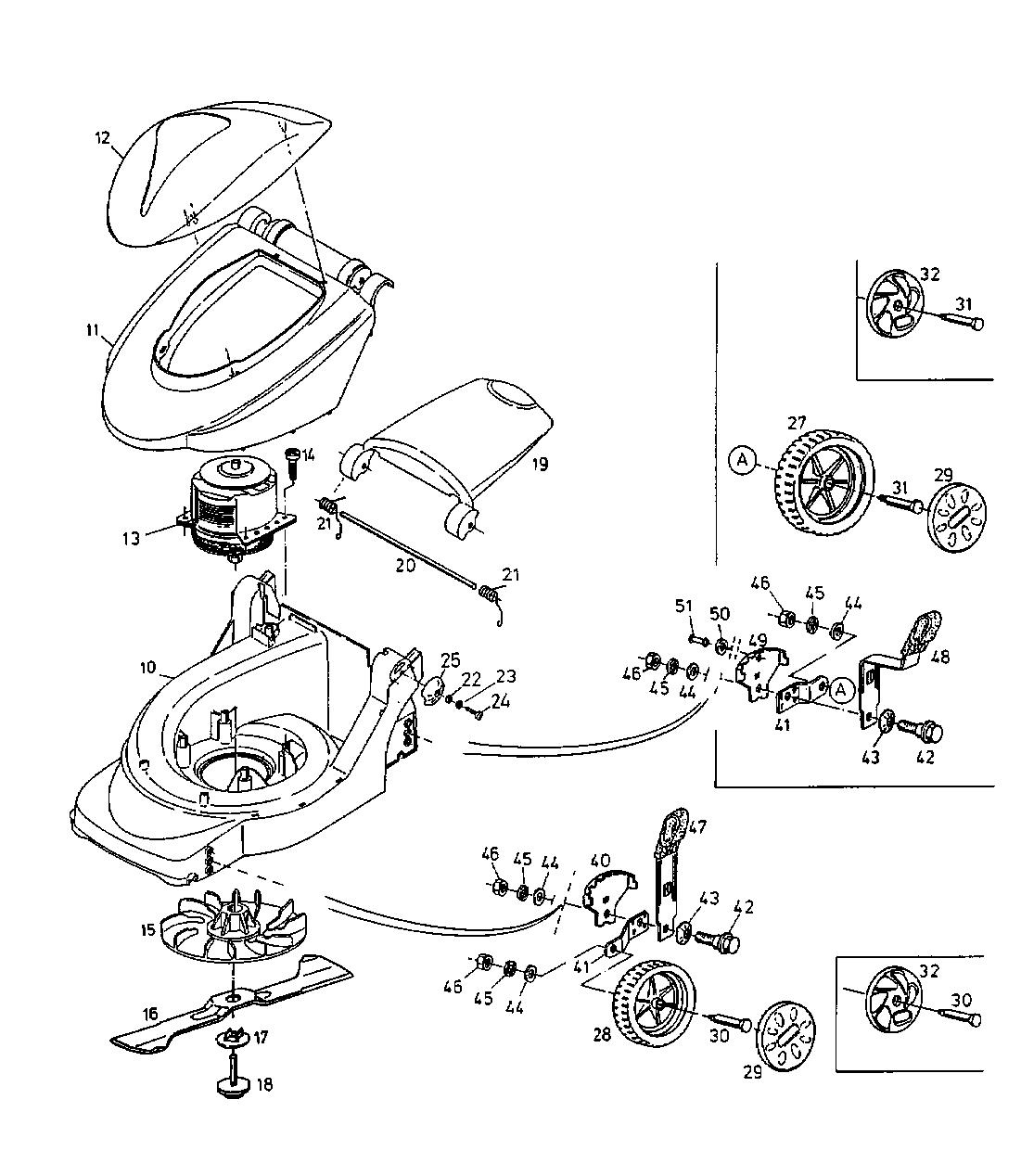

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007763

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
009 710-1757 PT:SCR: KB40X16 WN 1411 N/A POA
010 731-1788638 MOWER HOUSING N/A POA
011 731-1790638 PROTECTION COVER £29.02 Add
012 731-1792637 E-MOTOR SHROUD MTD BLACK 637 £15.94 Add
013 724-0299 ELECTRIC ENGINE 724-0275A £150.68 Add
014 710-1756 SCREW-TORX HD 5/16-18 000.02.498 £5.41 Add
015 631-0101 BLADE HUB ASM £23.01 Add
016 742-0800 MOWER BLADE £41.93 Add
017 782-7050 LOCK PLATE £9.82 Add
018 624-0075 BOLT ASM:BLADE:T-DECK:ELEC £8.08 Add
020 747-1003 ROD £3.33 Add
021 732-0876 SPRING £3.89 Add
022 736-0697 Washer 24.6486.13 £2.19 Add
023 736-0698 Spring washer 24.8191.09 £4.41 Add
024 710-1350 Screw N/A POA
025 731-1789638 CAP MELON YELLOW £3.33 Add
027 734-1877637 WHEEL DIA 185 mm £22.74 Add
028 734-04202 WHL:COMPL:160mm £27.07 Add
029 720-0330674 HUB CAP £5.26 Add
029 720-0330662 HUB CAP £3.82 Add
030 738-1026 BOLT N/A POA
031 738-1027 AXLE BOLT N/A POA
032 720-0343 HUB CAP, WITHOUT LOGO, BLACK 720-0343637 £8.48 Add
040 782-0607 PLT:ADJ:HGT T-DECK £5.08 Add
041 782-0617A PIVOT ARM £12.88 Add
042 738-1030A Screw 079.29.178 £7.92 Add
043 736-0651 Spring Washer 25x1 28.7111.50 N/A POA
044 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.76 Add
045 736-0708 Lockwasher 24.8190.18 £2.42 Add
046 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
047 682-0271A LVR ASM:HGT:L0-WHL 079.29.735 £10.01 Add
048 682-0231 ADJUSTING LEVER-REAR £9.14 Add
049 782-0614 INDEX PLATE £6.47 Add
050 736-0691 WASHER:A 4.3 DIN 125 N/A POA
051 000.05.009 Rivet £2.94 Add
