MTD009607

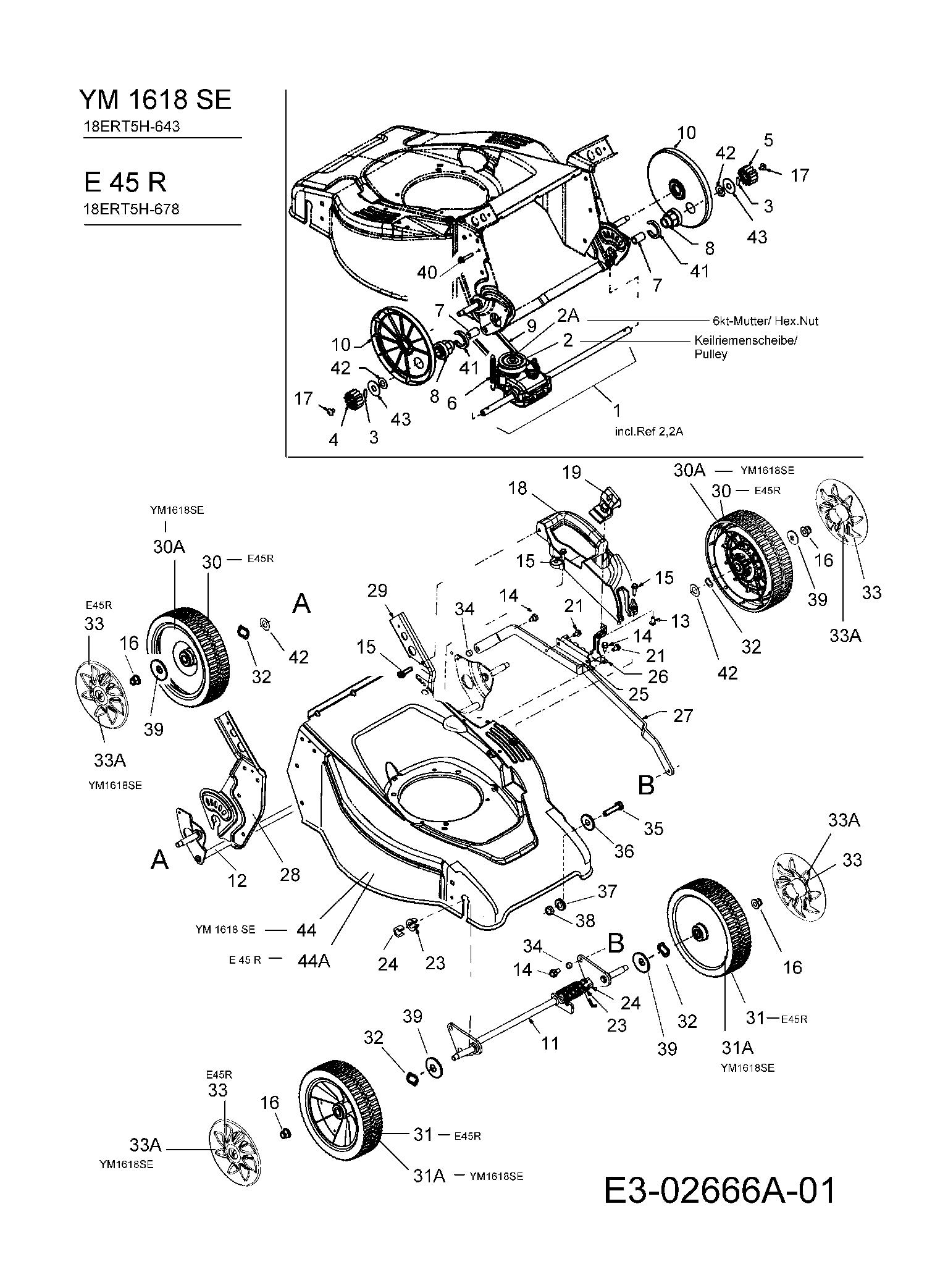

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04364	TRANS ASM:T-DECK:SP	£132.87	Add
002	756-04221	PUL:3.03:TRANS:EURO	£36.93	Add
003	715-0221	DOWEL PIN:H.G.PROD. 3/16 x 3/4	£5.33	Add
004	717-04184C	DRIVE PINION L.H. 717-04184A	£31.66	Add
005	717-04192C	DRIVE PINION R.H. 717-04192A	£31.66	Add
006	732-04262	SPRING:EXTN:.429 OD x 2.515	£12.34	Add
007	741-0710	BEARING-SLEEVE:.502x.627x1.00	£5.41	Add
008	748-04051A	SUPT:BRG:SP T-DECK 748-04051	£22.19	Add
009	754-04003A	BELT:V-TYP:3L x 32.62	£25.70	Add
010	731-04756B	CVR:WHL:DUST:T-DECK 731-04756	£13.04	Add
011	687-02081	AXLE ASM:WHL	£39.66	Add
012	687-02110	BRKT ASM:PIVOT SP CENT HGT ADJ	£47.22	Add
013	710-04030	SCR:HL:1/4-20:.5:PANPHI	£3.61	Add
014	710-04203A	SCR:M6x1:12 MM:DIN 7500	£5.19	Add
015	710-04280A	SCR:M6x1:25mm:DIN 7500	£3.31	Add
016	712-04074	NUT:HEX:M10x1.25 DIN 985	£2.79	Add
017	710-04223	SCR:M6x1.0x10:PANTRXI	£4.80	Add
018	731-04592A	HNDL:HGT ADJ:"T" 731-04592	£27.42	Add
019	731-04596A	HEIGHT ADJUST BUTTON	£9.38	Add
021	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
023	741-0708	BRG:FLG:HEX SPLIT .500 ID	£13.90	Add
024	750-04268	SPCR:CLIP:12.5mm ID x 13 LG (OBSOLETE)	£4.70	Add
025	787-01155C	HEIGHT ADJUSTER BRACKET	£11.88	Add
026	787-01156B	BRACKET	£18.66	Add
027	787-01157B	FINISH:PAINT	£28.20	Add
028	787-01161637	BRKT ASM:HANDLE:SP:RH 687-02118	£30.38	Add
029	787-01162637	BRKT:HANDLE:SP:LH 687-02116	£31.14	Add
02A	712-0411	NUT	£2.69	Add
030	634-04249	WHL ASM:200mm:RWD ELP SLV	£41.30	Add
031	734-04079	WHL:COMP:500x50 IDLE ELLIPSE	£40.89	Add
032	736-0504	WAVE WASHER	£2.84	Add
033	731-04750	HUBCP:WHL:T-DECK:OYSTER GRAY	£5.50	Add
034	750-04305	SPACER:6.60mm ID x9mm OD x5.69	£3.59	Add
035	710-1733	HEX. SCREW M8x35 DIN 933-8.8	£4.25	Add
036	736-0702	WASHER	£2.40	Add
037	736-0695B	washer	£3.20	Add
038	712-0692	HEX NUT	£3.10	Add
039	736-0331	BELL WASHER	£3.95	Add
040	710-04280	SCR:M6x1:30mm:DIN 7500	£3.31	Add
041	750-04317	SPCR:CLIP:30MM ID x 6 MM LG	£5.91	Add
042	736-3013	WASHER-FL	£2.98	Add
043	736-04159	WASH:FLAT:.510 x 1.373 x.48	£4.22	Add
044	787-01348665	DECK:45cm:CENT HA	£118.27	Add
30A	634-04252	WHL ASM:200mm:RWD ELP SLV	£44.22	Add
31A	734-04083	WHL:COMP:500x50 IDLE ELLIPSE	£41.59	Add
33A	731-04618	HUBCP:WHL:"T" YARDMAN W/SPRIG	£7.92	Add
44A	787-01348638	DECK:45cm:CENT HA	£115.66	Add
