MTD016555

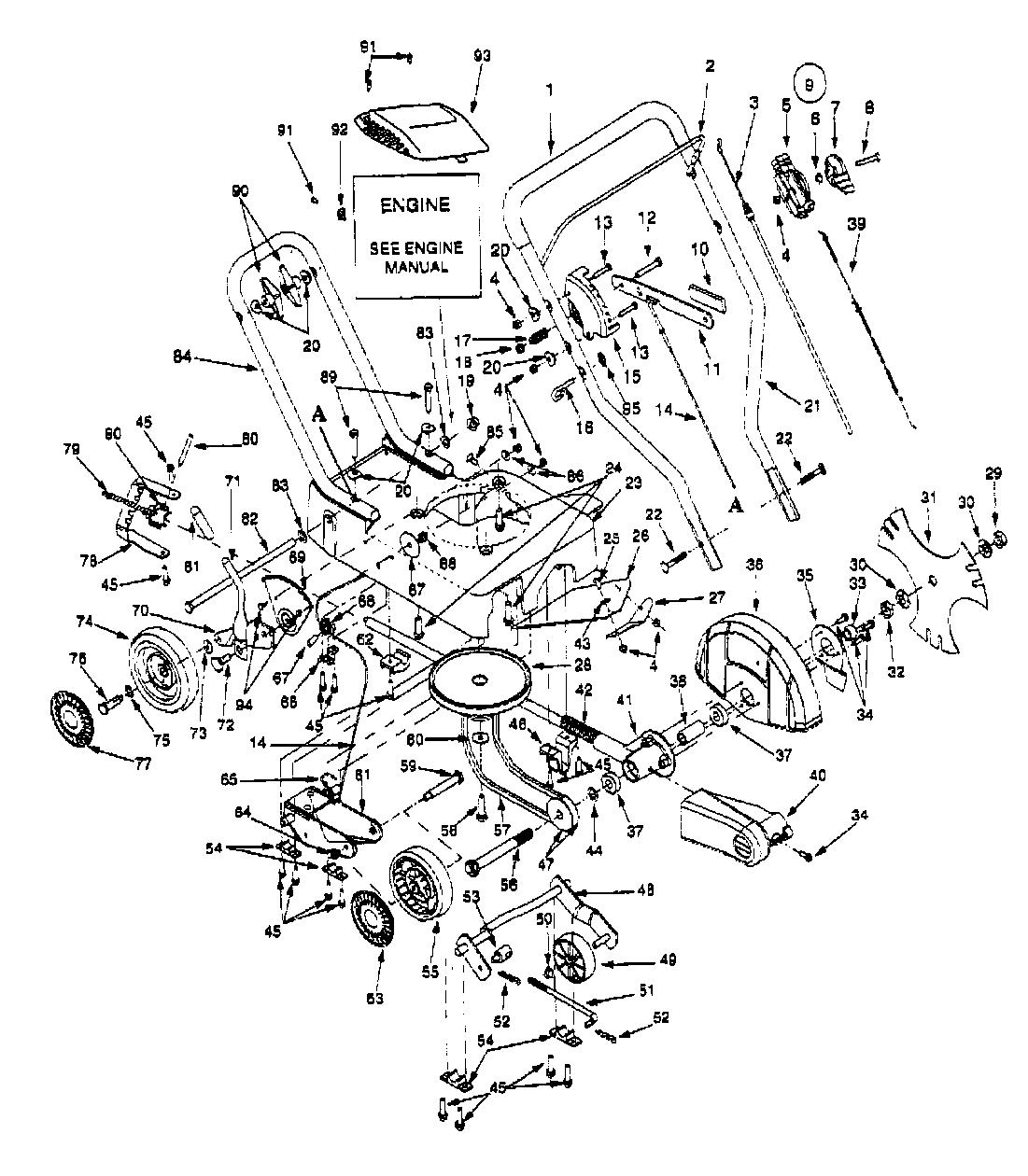

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	720-0297	FOAM GRIP	£16.93	Add
002	747-0976	BAIL	£18.48	Add
003	746-0966	NO LONGER AVAILABLE	N/A	POA
004	712-0324	HEX. INS L NUT	£3.69	Add
005	746-0875	THROTTLE BOX BODY	£17.98	Add
006	736-0501	SPRING WASHER (RED)	£4.00	Add
007	746-0875	THROTTLE BOX BODY	£17.98	Add
008	710-0605	SCR:MACH:1/4-20:1.825:OVALCSK	£3.44	Add
009	811-0185	CONTROL-THROTTLE	£29.81	Add
010	720-0142	HANDLE	£13.65	Add
011	781-0742	DEPTH LEVER	£9.16	Add
012	710-0116	SCREW-HEX	£9.03	Add
013	710-0256	BOLT-CARRIAGE	£2.77	Add
014	746-0955	DEPTH CABLE	£37.03	Add
015	781-0741	DEPTH BRACKET	£12.26	Add
016	710-1205	ROPE GUIDE	£3.26	Add
017	732-0369	COMPRESSION SPRING	£14.44	Add
018	712-0429	NUT HEX.INS L NUT	£4.92	Add
019	726-0299	CAP	£7.92	Add
020	736-0451	WASHER SADDLE	£3.44	Add
021	749-1079	UPPER HANDLE	£69.99	Add
022	710-1174	BOLT CURVED HEAD	£5.76	Add
023	631-0079	EDGER BASE ASS'Y	£353.03	Add
024	710-0502A	SCR:TTSEMS:3/8-16:1.250:HXLWSH	£7.56	Add
025	710-0289	HHCS:1/4-20:.50:GR2:STD	£20.02	Add
026	731-1935	DISCHARGE SHIELD DEFLECTOR	£26.03	Add
027	781-0746	DEFLECTOR KEEPER	£6.18	Add
028	756-1150	ENGINE PULLEY	£207.65	Add
029	712-0413	NUT:JAMLK:5/8-18:GR5:NYLON	£13.79	Add
030	736-0317	BELLE WASHER	£8.58	Add
031	781-0748	STAR BLADE	£37.17	Add
032	712-0318	NUT	£3.94	Add
033	750-1163	SPACER .628 X .875 X .545 LG.	£7.75	Add
034	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
035	781-0740	NO LONGER AVAILABLE	N/A	POA
036	731-1942	BLADE GUARD	£56.63	Add
037	741-0155	BRG:BALL:.62x1.38x.43:1623:DS	£28.42	Add
038	750-1158	SPACER .828 X .875 X 1.818 LG.	£9.93	Add
039	746-0845	THROTTLE CABLE	£23.84	Add
040	731-1939	NO LONGER AVAILABLE	N/A	POA
041	719-0387	SPINDLE W/INSERT	£263.49	Add
042	732-0862	COMPRESSION SPRING: ARBOR	£9.93	Add
043	736-0342	FLAT WASHER	£2.97	Add
044	736-0116	WASH:FLAT:.635 x.93 x.06	£3.70	Add
045	710-1241	SCR:HL:1/4-15:1.000:HXINDWSH	£3.20	Add
046	731-1929	FRONT ROD HANDLER	£15.92	Add
047	756-0449	3/8" "V"-PULLEY	£30.63	Add
048	681-0140	CURB WHL BRACKET ASS'Y	£59.67	Add
049	731-1932	CURB ROLLER	£15.78	Add
050	726-0100	PUSH NUT 3/8 (RED)	£3.24	Add
051	747-0991	ROD 5/16-24	£27.49	Add
052	714-0104	PIN INTERNAL COTTER	£2.78	Add
053	711-1171	FRL:5/16-24 RH X .312	£17.35	Add
054	731-1931	BLACK BUSHING .515 DIA X .62	£7.63	Add
055	734-1869	WHEEL 7" X 2" LINK W/BB	£56.28	Add
056	710-1627	HEX BOLT 5/8-18 X 5.25 LG.	£20.65	Add
057	754-0142	3V-BELT 31.2" LG.	£49.21	Add
058	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
059	738-0481A	SHOULDER SOREW .500 X 2.62: 3/8-16 738-0481	£8.01	Add
060	736-0452	BELL-WASH 39 INCH	£8.68	Add
062	731-1930	REAR ROD HANDLER	£15.92	Add
063	731-1886	HUB CAP YELLOW W/HOLE	£20.94	Add
064	712-3020	NO LONGER AVAILABLE	N/A	POA
065	732-0867	TORSION SPRING	£17.88	Add
066	781-0747	CABLE KEEPER	£7.75	Add
067	747-0993	IDLER ROD	£9.82	Add
068	756-0625	cable idler wheel	£10.52	Add
070	781-0745	INDEX PLATE	£15.54	Add
071	732-0806	SPRING LEVER	£17.09	Add
072	738-0507B	SHOULDER BOLT	£6.89	Add
073	736-0105	BELL WASHER	£3.33	Add
074	734-1978	WHEEL 8 X 2"	£35.46	Add
075	736-0504	WAVE WASHER	£2.84	Add
076	738-0102	SHOULDER BOLT	£7.13	Add
077	731-1426A	HUBCP:WHL:RADIAL SPOKE YELLOW 731-1426	N/A	POA
078	781-0749	TILT BRACKET	£7.98	Add
079	681-0139	ADJ. LEVER ASS'Y	£11.25	Add
080	715-0121	SPRING PIN SPIR. 1/4" DIA.	£4.64	Add
081	720-0230	GRIP:FOAM: .50 ID X 3.54" LG	£3.77	Add
082	711-1278	CURB AXLE	£19.89	Add
083	736-3088	WASHER,FLAT	£8.58	Add
084	749-1078	LOWER HANDLE	£54.67	Add
085	710-0134	BOLT	£3.03	Add
086	736-0211	WASHER:FLAT:.285 x 1.250 x.060	£3.91	Add
087	736-3040	FLAT WASHER	£13.16	Add
088	712-04065	NUT	£4.02	Add
089	710-3180	SCREW HEX CAP	£5.00	Add
090	732-0188A	TORSION SPRING	£15.06	Add
091	710-1237	SCREW SELF TAP	£3.00	Add
092	751B213146	CASING CLAMP (OBSOLETE) (OBSOLETE)	N/A
093	751B281777	ENGINE SHROUD	£21.01	Add
094	710-1637	SCREW STD. 1/4-20 X .75 LG.	£3.69	Add
095	720-0279	WING NUT	£2.99	Add
55A	741-04317	NO LONGER AVAILABLE	N/A	POA
74A	741-04317	NO LONGER AVAILABLE	N/A	POA
90A	720-04072A	HAND RELEASE	£4.27	Add
